Product: GPS Tracking Solution

Model No.: AT09-4G

4G GPS Tracking Device supporting TPMS | Wi-Fi | Bluetooth | LoRa

GPS tracking software platforms supporting this gps tracking device: redgps, traccar, gurtam, gpsgate, gps-server

TPMS

Video Monitoring

Fuel Level Monitoring

long distance RFID

what special in this gps tracking device?

Tire Pressure monitoring online in Realtime and history records

Wi-Fi hot spot offering internet access to passengers' cellphones, IP camera, dash camera, etc.

LoRa support for better network connection to other things.

Bluetooth support for better network connection to other things.

ports for multi peripherals: 1 RS485, 2 RS232, 1 microphone and 1 speaker, 1 CAN, 1 TTL, 2 1-wire

2 temperature sensors monitoring simultaneously

Send data to two servers simultaneously

4 fuel sensors monitoring simultaneously

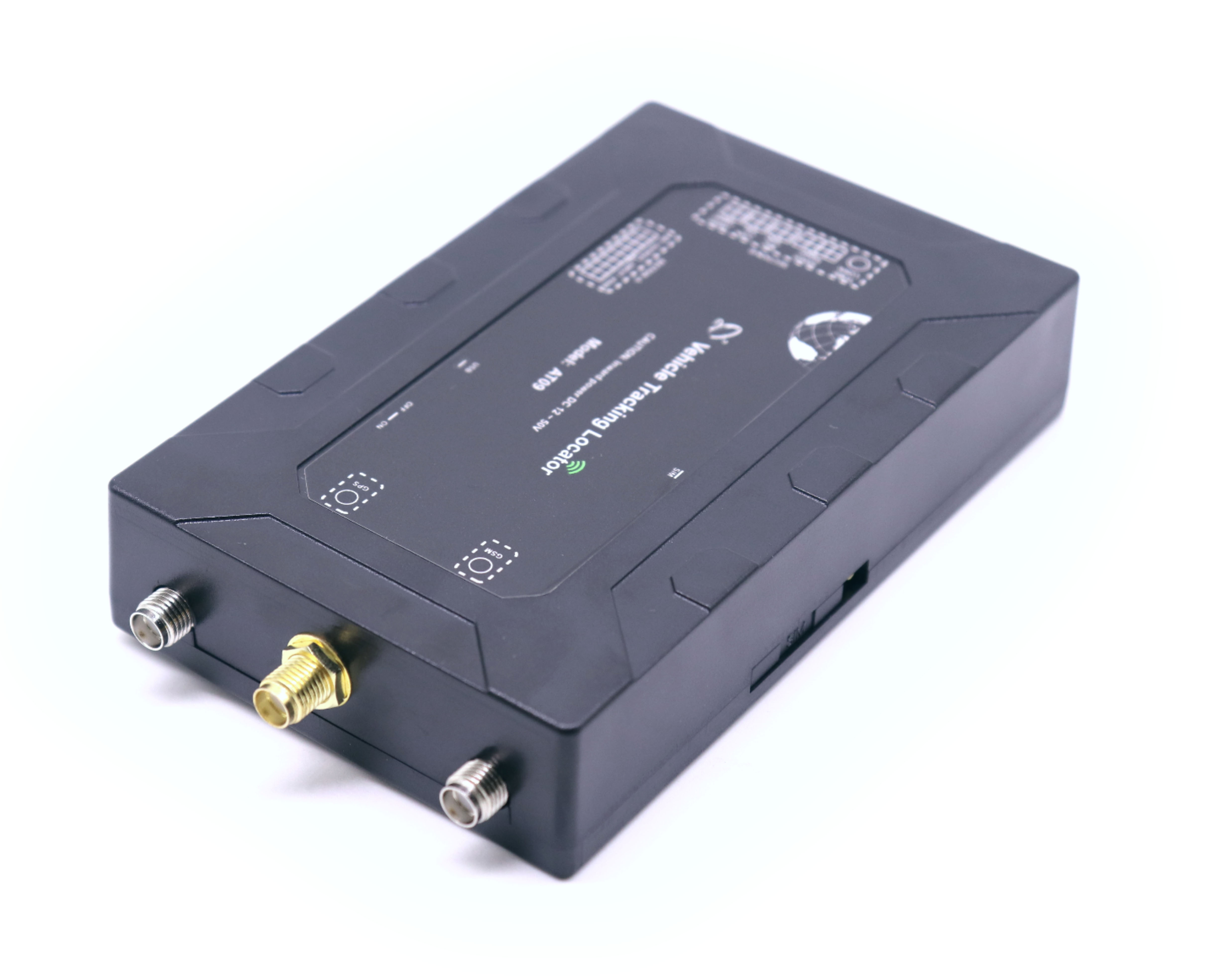

GPS Tracking Device AT09-4G supporting tire pressure monitoring, Wi-Fi hot spot, LoRa, etc.

● Google map link sent via SMS
● support Omnicomm fuel sensor
● Two way voice communication
● High temperature and low temperature resistant battery

To see the traces of AT09-4G, please check here:

Tire Pressure Monitoring in GPS Tracking

● Anti tires theft Realtime
● Monitoring tires pressure, tires temperature, sensor volt online
● alarms for tires pressure, tires temperature, sensor volt to server
● alarm tire pressure value adjustable
● Replaceable battery for valve-cap sensor: CR2032
● Sending commands to hardware remotely
● Anti theft sensors mounting design
● Intelligent power consumption on 3-Axis digital Accelerometer
● 42 tire pressure sensors maximum supported
● Reduce tires maintenance cost, save clients money
● Support different tire pressure sensors: external tire sensor, internal tire sensor, air-flow-through tire sensor, banded tire sensor

KNOW MORE

real time tire pressure monitoring image

Tire Pressure Sensors supported by our GPS tracking device and TPMS display

caps tire pressure sensor: TS06

caps tire pressure sensor for OTR, earth moving machines

caps TPMS sensor for large bore: TS06-LB

internal tire sensor: TS08

air flow through tire sensor: TS09

banded tire sensor: TS10

Click here for more details of TPMS sensors...

TPMS Frequency

RF433.92MHz

TPMS chip

ATA5428; SP37.

TPMS sensor Battery

Lithium-Manganese Button Cell Battery
working temperature: -40°C--125°C

TPMS Pressure Range

1-4.5Bar(100kPa-450kPa);
1-9bar(100kPa-900kPa)

contact part with tire stem

anti-erosion brass

Pressure Accuracy

±1.5psi

Temperature accuracy

±3°C

Transmission power

≤10dBm

Standby Battery life

≥3 years

Remote Controller function in GPS tracking

● unique ID for authorization as RFID function. Automatically detection of remote controller by GPS tracker
● 50meters wireless distance
● three buttons to control vehicles engine or other functions by enabeling or disabling digital output. Or user defined mode
● easy for use and compact size. as small as car key, as light as feather
● lower power consumption for more than 4 years working hours
● RF433.92MHz wireless radio frequncy

KNOW MORE

Wi-Fi hot spot connection in GPS tracking

applicable scope: WIFI camera, passengers' wifi connection for internet surfing service, other peripherals which can connect wifi hot spot

specs for Wi-Fi

● compact Wi-Fi module size
● support IEEE 802.11a/b/g/ac protocol
● active point access 16 max
● temperature: -40°C to 85°
● size: 16.6mm +13.0mm+2.1mm
● weight: 0.8g or so

WiFi IP CAMERA on GPS TRACKING or CCTV

● HD Infrared Waterproof, shockproof
● Latest DSP digital signal processing technology
● Image stablilization technology
● Automatically adapt to the digital noise reduction
● 5.8G WiFi
● used in vehicles or in houses
● realtime video monitoring or history video monitoring
● support more than four wifi cameras simultaneously
KNOW MORE

wifi camera for realtime video monitoring in gps tracking

LoRa connection in GPS tracking

LoRa network support for large IoT things.

Bluetooth connection in GPS tracking

Bluetooth network support for IoT things.

Description for GPS tracking

● GPS and GLONASS supported simultaneously
● BeiDou and Galileo supported optionally
● Robust firmware design and stable hardware with watchdog
● Real time tracking and history data traces tracking
● 3-Axis Digital Accelerometer movement status monitoring
● Firmware update by OTA
● Support DC 9v --50v , over-voltage protection
● Send commands to GPS trackers via GPRS
● Send GPRS data to IP or domain name
● 16Mb Flash Memory( stores 4000pcs or so data)
● Fuel/oil level detection with high accuracy
● 2g, 3g, 4g
● GPS module with high GPS positioning accuracy
● SMS, GPRS TCP / UDP communications
● Real time tracking and history data traces tracking
● Track by cell phone or web based tracking software
● Real-time tracking (Time, Distance Interval or Intelligent Mode)
● Multiple alarm types
● Control car doors close/open, Detect the status of engine on/off
● Intelligent power management: normal, sleep, deep sleep
● flash memory for data storage in GSM blind area
● Sleep mode for Saving Power and GPRS traffic
● Backup battery: 800 mAh Li Polymer battery
● Geo-fencing reports: into-Geo-fence; Out Geo-fence
● Motion sensor for vehicle motion detections
● Different GPRS data string sending intervals:

at certain interval in engine on or tremble state;

at the other interval in engine off or parking state

● Flexible GPRS data sending modes by different triggers:

data sent by time interval;

data sent by distance;

data sent by course change.

alarm data sent immediately

Alarm Events

Over Speeding

Low Battery

GEO Fencing

Vibration Alert

Car Door State

External Power Off

SOS Alarm

GPS Antenna state

Engine State

Course Change

vehicle towing alert

engine idle alert

Solutions and managements

fuel level monitoring

RFID reader identification

OBDII monitoring

Mobileye ADAS

iButton reader verification

biometric finger prints

garmin navigation

tire pressure monitoring tracking

magnetic stripe reader

dual temperature sensor

camera monitoring

How is the gps tracking device configured?

● via SMS
● via gprs/3g/4g
● via configuration software

Accessories

Standard:
GSM Antenna: 1pcs | GPS Antenna: 1pcs | I/O cables: 1 set

Optional accessories:

Relay

Fuel Sensor

OBD module

Door Sensor

TPMS RF433.92MHz antenna

Camera

Temperature sensor

Microphone

Speaker

Omnicomm fuel sensor

Buzzer

iButton Reader and iButton tags

RFID reader and RFID tags

LED lamp

Technical Properties

External Power Supply

+12v--- +50v / 1.5A

Internal Battery

800mAh, rechargeable polymer lithium-ion battery,
anti-high temperature to 80°C

Normal power consumption

2W, 12.5W at peak

Dimension

112×80×25mm

Weight

150g

Flash Memory

16Mb

Operating temperature

-20°C to 60°C

Humidity

5% to 95% Non-condensing

Frequency

2G | 3G | 4G

GPS

GPS Sensitivity

-162 dBm

Receiver type

50 Channels | GPS L1 frequency, C/A Code | SBAS: WAAS, EGNOS, MSAS

Horizontal position accuracy

GPS 2.5 m | SBAS 2.0 m | SBAS + PPP7 < 1 m (2D, R50)8) |
SBAS + PPP7 < 2 m (3D, R50)8

Velocity Accuracy

0.1 m/s

Reacquisition

0.1 sec., average

Hot start

Warm start

Cold start

27s

Heading accuracy

0.5 degrees

Velocity Accuracy

0.1m/s

LED

red LED

power

blue LED

GPS

green LED

GSM | 3G | 4G

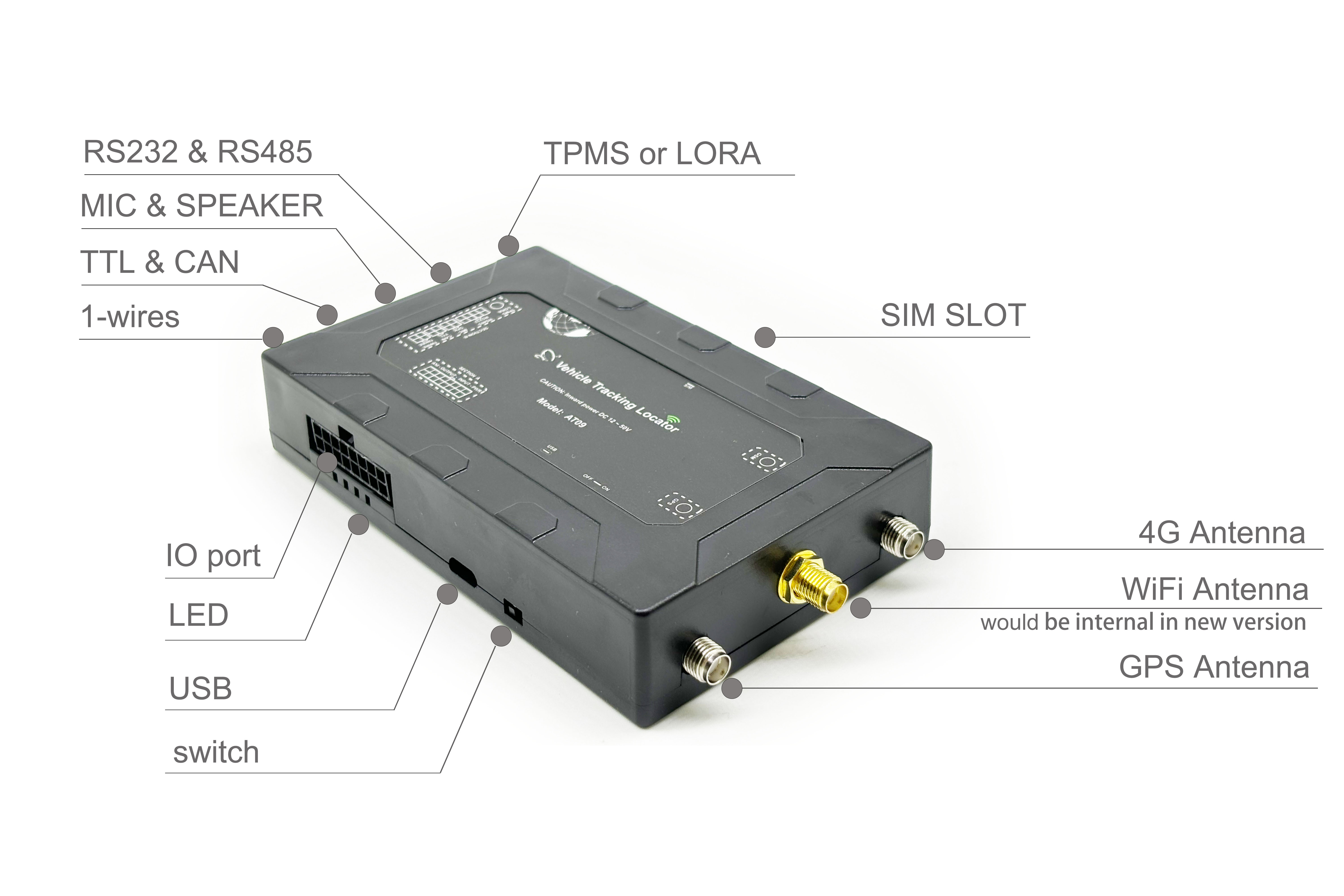

Interfaces

IO ports

4 digital inputs , 4 digital outputs, 4 analog inputs

serial ports

2 RS232 ports, 1 RS485 port

1-wire ports

2 1-wires, 4 ports for voice communication

speaker & microphone

4 ports for voice communication

SOS button

1 switch input

GPS

1 port for GPS antenna

1 port for 4G antenna

TPMS

1 port for TPMS antenna

USB

1 USB port for debugging and configuration

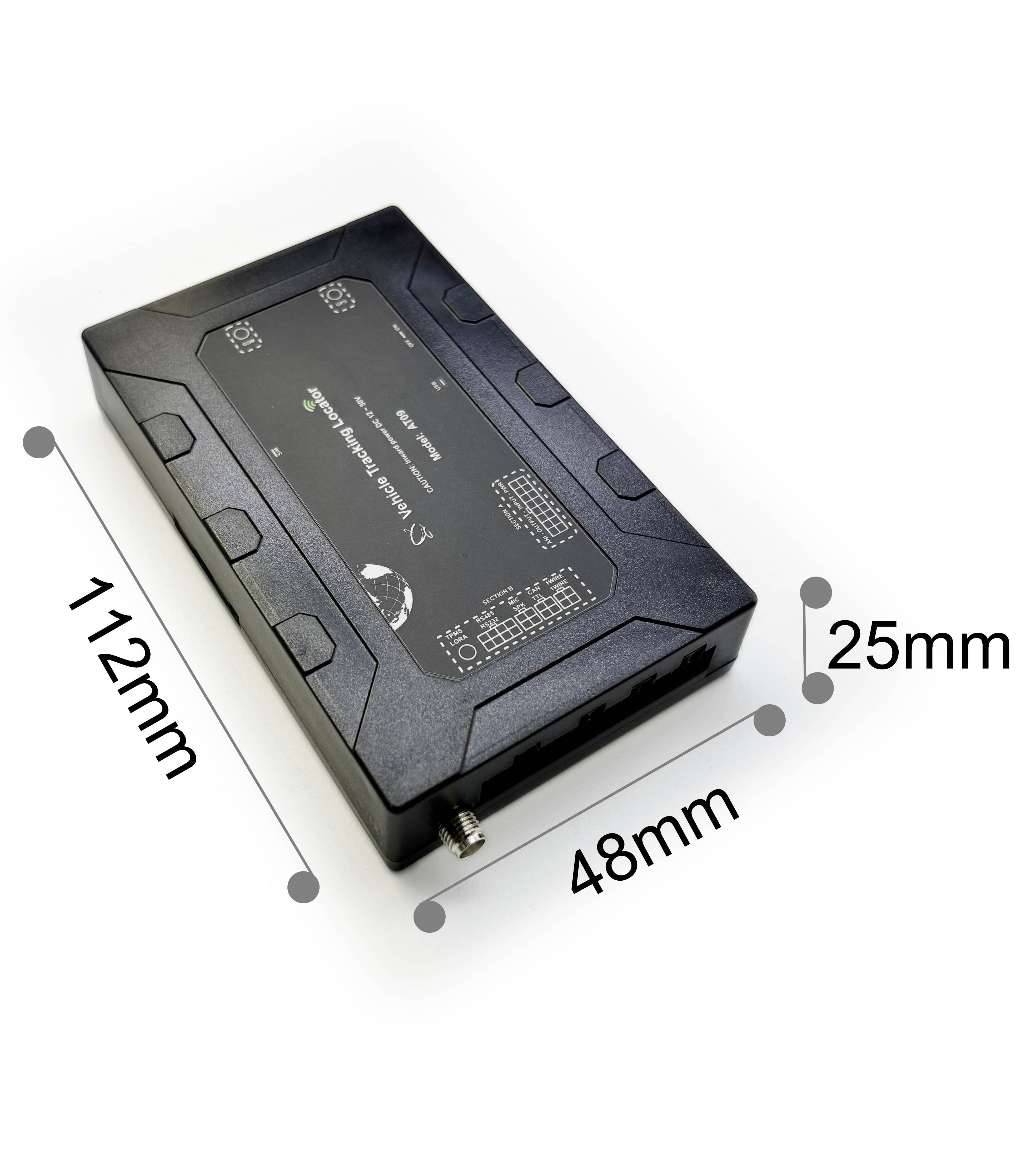

size

112×80×25mm | 4.4×3.15×0.98inch

GPS Tracking Device AT09-4G supporting tire pressure monitoring, Wi-Fi hot spot, bluetooth, LoRa, etc.

Packing Details:

net weight for 1 AT09:150g
weight for 1 set: 800g
weight for 1 carton: 600g
size for 1 carton: 48×37×33 cm
30pcs box / carton
