Product: 4G WiFi Router in GPS Tracking

Model No.: AT09-4G

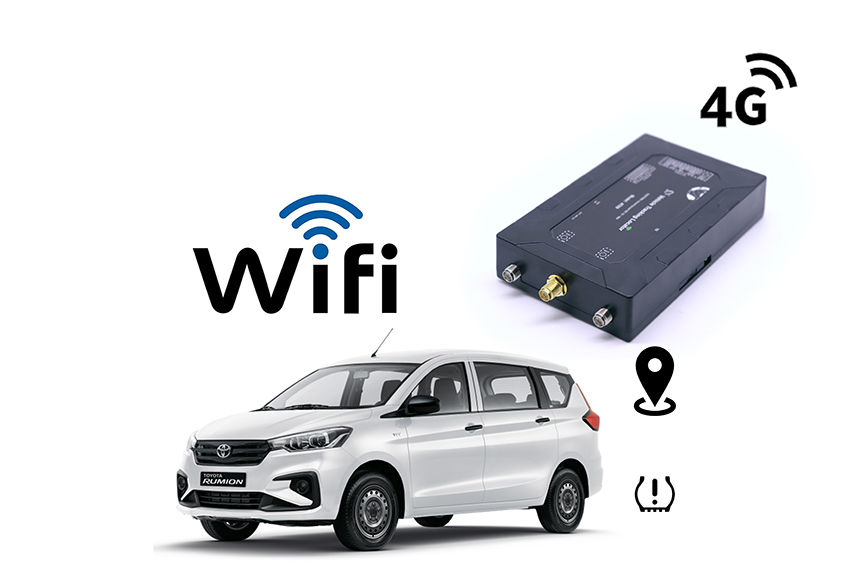

4G WiFi Router in GPS Tracking



● Support WiFi camera connection.
● Combination of 4G Wi-Fi router and GPS tracker.
● Wi-Fi client and MCU can connect the 4G network simultaneously via 4G module EC25.
● MCU can control Wi-Fi by AT commands.
● Support connection via USB, UART, SPI.
● High temperature and low temperature.
● 10 Max Wi-Fi user connections.
● cellphones, tablets, laptops or other wifi devices can connect to this Wi-Fi router via Wi-Fi for internet connection.



4G Wi-Fi router in GPS tracking

Qualcomm 4G Chip Set


Qualcomm 4G chip IZat Gen8C for best data transmission and signals.
4G Wi-Fi router in GPS tracking

10 users connections max

10 users connections simualtneously. It Supports Cellphones, tablets, laptops, etc.

High Speed Data Rate

Max 150Mbps downlink data speed on LTE-FDD.
4G Wi-Fi router in gps tracking

GPS Tracking Function

Advanced GPS tracking with multiple functions for fleet management.


GPS Tracking Device AT09-4G supporting tire pressure monitoring, Wi-Fi hot spot, LoRa, etc.

Wi-Fi and Bluetooth Specs


Supply Voltage
3.3V + 1.8V
Interface
SDIO + UART&PCM
WLan technology
802.11 a/b/g/n/ac
Antenna
Wi-Fi&BT antenna
Data Rate

[email protected]; [email protected]; [email protected]; [email protected]; [email protected]
AP(Access Point)
16
Other Interface Pin
Reset/COEX
Operation Temperature
-40°C to +85°C


4G module: EC25


Frequency Bands

EC25-V
LTE FDD: B4/B13
EC25-J
LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19
EC25-A

LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
EC25-AU
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40 WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
EC25-AUT

LTE FDD: B1/B3/B5/B7/B28
WCDMA: B1/B5
EC25-E
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8 GSM: B3/B8


Bandwidth
1.4/3/5/10/15/20MHz
Supply Voltage Range
3.3V~4.3V, 3.8V Typ.
Operation Temperature
-40°C ~ +85°C

Data

LTE-FDD
Max 150Mbps (DL) Max 50Mbps (UL)
LTE-TDD
Max 130Mbps (DL) Max 35Mbps (UL)
DC-HSPA+
Max 42Mbps (DL) Max 5.76Mbps (UL)
UMTS
Max 384Kbps (DL) Max 384Kbps (UL)
EDGE
Max 236.8Kbps (DL) Max 236.8Kbps (UL)
GPRS
Max 85.6Kbps (DL) Max 85.6Kbps (UL)Speech Codec Modes:HR, FR, EFR, AMR, AMR-WB

Electrical Specs

Consumption
20uA @Power off3mA @Sleep, Typ.22mA @Idle
Sensitivity
LTE B1: -101.5dBm (10M)LTE B2: -101dBm (10M)LTE B3: -101.5dBm (10M)LTE B4: -101dBm (10M)LTE B5: -101dBm (10M)LTE B7: -99.5dBm (10M)LTE B8: -101dBm (10M)LTE B12: -101dBm (10M)LTE B13: -100dBm (10M)LTE B20: -102.5dB (10M)LTE B28: -102dBm (10M)UMTS B1: -110dBmUMTS B2: -110dBmUMTS B4: -110dBmUMTS B5: -110.5dBmUMTS B8: -110.5dBmGSM: -109dBmDCS: -109dBm
Output Power
Class 3 (23dBm±2dB) for LTE FDDClass 3 (23dBm±2dB) for LTE TDDClass 3 (24dBm +1/-3dB) for TD-SCDMAClass 3 (24dBm +1/-3dB) for UMTSClass E2 (27dBm ±3dB) for EDGE 850/900MHzClass E2 (26dBm +3/-4dB) for EDGE 1800/1900MHzClass 4 (33dBm ±2dB) for GSM 850/900MHzClass 1 (30dBm ±2dB) for GSM 1800/1900MHz
