Product: video monitoring in gps tracking
video monitoring in gps tracking
Features
● HD Infrared Waterproof, shockproof
● Loop recording video automatically
● WIFI hotspot and AP support
● Support downloading history video from TF card
● Can be used in vehicles or in houses
● realtime video monitoring or history video monitoring remotely online
● support more than four wifi cameras simultaneously
Technical Properties
lens
2.8mm + 90° | angle;4mm + 80° | 6mm + 70°
sensor
CMOS sensor GK7205V200+ 1/2.8"GC2063
resolution
1080P(1920 * 1080) | 5MP(2560 * 1080)
lux
COLOR 0.01Lux @F1.2; B/W 0.001Lux @F1.2;
COLOR 0.001Lux @F1.2; B/W 0.0001Lux @F1.2;
COLOR 0.001Lux @F1.2; B/W 0.0001Lux @F1.2;
coding output rate
1~25 frame/sec | 1~25 frame/sec | 1~15 frame/sec
WIFI hot spot
5.8G WIFI hotspot for cellphone direction connection,
1.2mA @ DRX=9
router configuration
configure router connection via cellphone or PC
common functions
anti-flashing, double code streams, password protection
IP support
static IP, dynamic IP, PPOE
Supported protocol
onvif | RTSP | CGI | GB28181 protocol
power supply
DC 12V power
working temperature
-40°C to 70°C
storage
none | 64GB | 128GB | 256GB
night vision mode
common night IR
effective distance
20meters

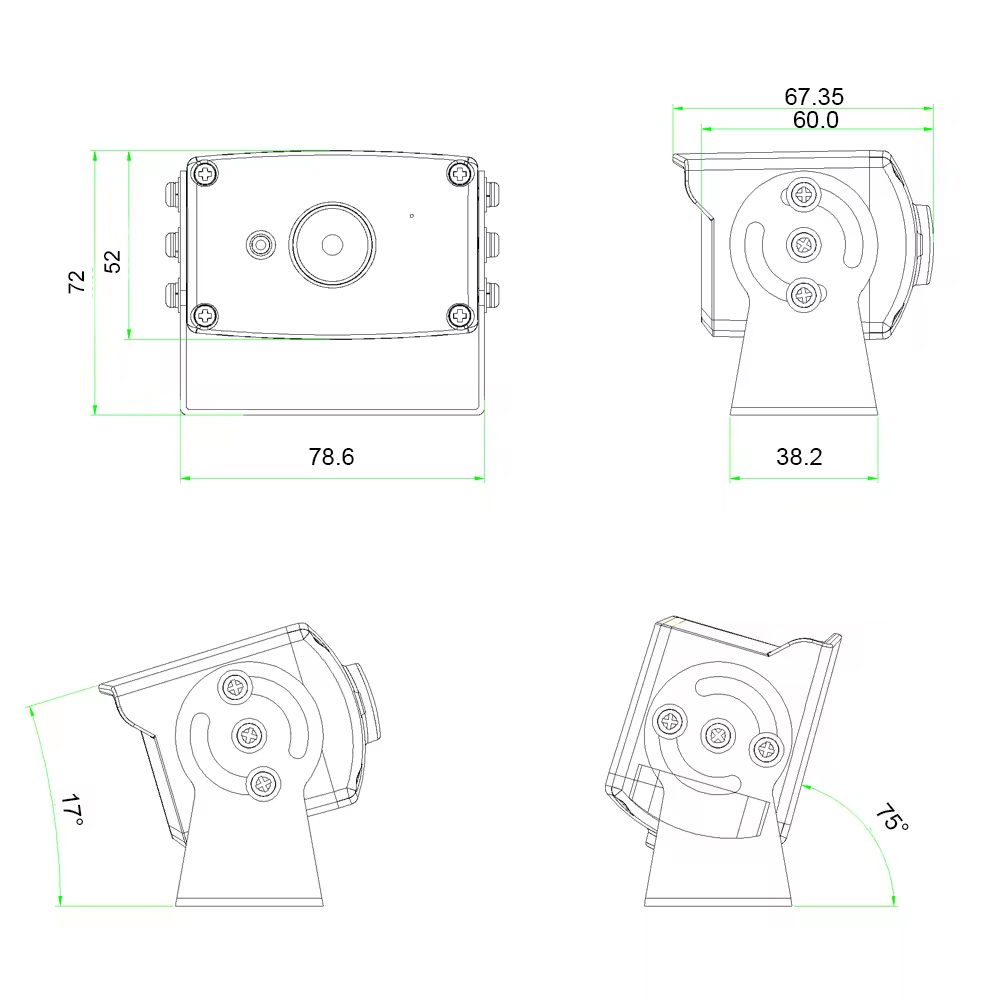

SIZE
VIDEO MONITORING
realtime video monitoring in vehicle or in house on WIFI camera in GPS tracking solution
