Products: Tyre Pressure Monitoring System

Model No.: TP08

Solar Powered Wireless Tyre Pressure Monitoring System


Features

Solar panel power supply
Alert for fast tyre air leaking
Configurable for high / low pressure alert
USB charging if no solar power source
● Pressure and temperature alert
● Selectable pressure unit(PSI | BAR)
● Selectable temperature unit(°C | °F)
● Configurable for high / low temperature alert
● Easy sensor included in the monitor
● Automatic white and red backlight
● Rechargeable lithium battery
● Display four tires' temperature and pressure simultaneously

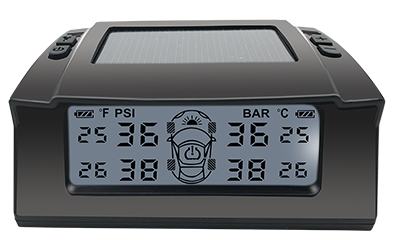

wireless tire pressuer monitoring system, solar powered TPMS
tire pressure sensors

If you want it for your own use, you can buy it on eBay:

buy TPMS on eBay

Description

● Radial acceleration sensor, temperature sensor, supply voltage sensor
● Embedded 8051 compatible 8-bit microcontroller
● 6KB on-chip FLASH memory
● 256Byte RAM
● 315 and 434MHz FSK/ASK RF-transmitter
● 125KHz ASK high-sensitivity LF-receiver
● Advanced power control/wake-up system to minimize battery consumption
● Ultra low standby current

TPMS Display Screen

TPMS display screen


Technical Properties:

Display Specs:

ITEMS SPECIFICATIONS
 Temperature Setting Range   -20°C--93°C
 Operation Temperature  -20°C--80°C
 Storage Temperature  -30°C--85°C
 Power Supply  DC 5V
 Frequency  RF433.92MHz
 Battery 400mAh, 3.7v, High temperature resistant: 80+/-5°C. Check more...
 Display  FSTN LCD(63*25/23*1.10Tmm), half penetration;
 LED backlight: red and white SMD, 68*22*2.2mm
 Size  87*73*35mm
 Weight  82g
 TPMS chip  ATA5428
 Solar Power supply   0.35w power, 5V

tpms, solar powered tyre pressure monitoring system

Sensor Specs:

ITEMS SPECIFICATIONS
 Pressure Range  1-4.5Bar(100kPa-450kPa);
 1-9bar(100kPa-900kPa)
 Temperature Setting Range   -20°C--93°C
 Operation Temperature  -20°C--80°C
 Storage Temperature  -30°C--85°C
 Power Supply  DC 5V
 Frequency  RF433.92MHz
 Battery  Lithium-Manganese Button Cell Battery
working temperature: -40°C--125°C
 contact part with tire stem  anti-erosion brass
 Size  21 x 20 mm (ø x h)
 Weight  82g
 TPMS chip  SP370-25-116-0
 Pressure Accuracy  +-1.5psi
 Temperature accuracy  +-3°C
 Transmission power  <=10dBm
 Standby Battery life  >=3 years


sensor battery:

●  broad working temperature: -40°C to 120°C.
●  wonderful leakproof in high temperature environment or high speed vehicles.
●  Working well in 200G motion status(equal to vehicle in 300km/h speed)
ITEMS SPECIFICATIONS
 battery  Lithium-Manganese Button Cell Battery
 Voltage  3V
 Capacity(discharge to 2V with 15kΩ in 20°C)  560mAh
 size  24.5(-0.3)*5.0(-0.3)mm ø x h
 Battery weight   about 6.8g

size:

size of tpms display             size for tpms sensors, tire pressure sensor

Benefit From Tyre Pressure Monitor

● Extend the life of the tire.
● Save your fuel consumption.
● Save your money.
● Control the tire pressure constantly.
● Release your attention from tire and more safety.
● No more tire break-ups due to running tires under inflated.

Packing Details(standard)

4 tire sensors + 1 monitor display in 1 box;

Standard accessories:

1 wrench | 4 nuts | 1 non slip mat |
