How to use TPMS receiver module TP07

TPMS receiver TP07 is designed for offering TPMS data to other devices like GPS tracker, DVR, car electronics. Below is steps for how to connect TPMS devices to Teltonika GPS via RS232.

Things to start

• TPMS receiver TP07 device
• TPMS configuration Software
• USB uart cable for TPMS receiver TP07
• Windows OS PC Win 8, Win 10 or Win11

Install driver for configuration cable

If you didn't install the driver for configuration cable, please install driver first.

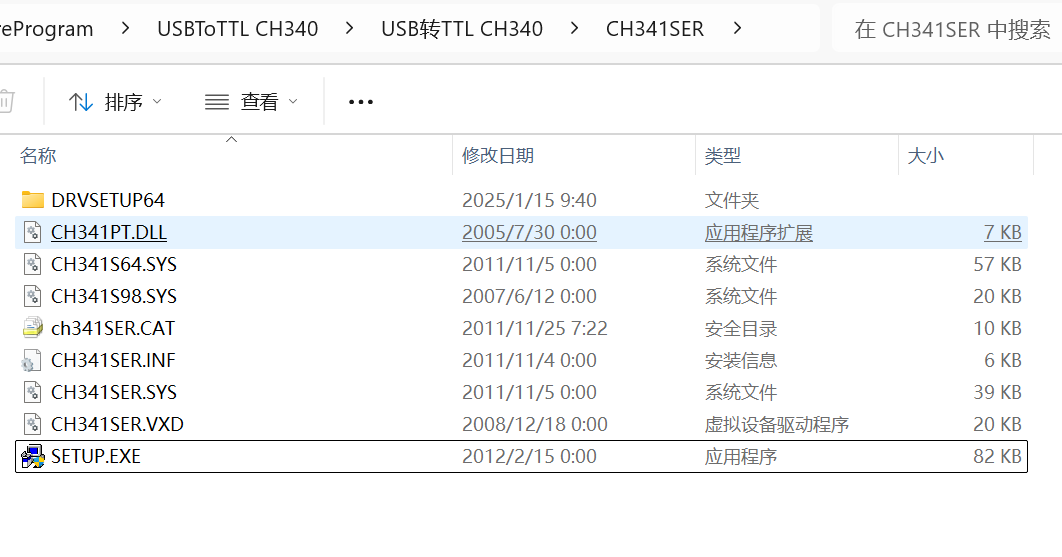

Unzip USBToTTL CH340.zip.


Find the file named 'SETUP.EXE' like below, and install it.

connect TP07 to PC

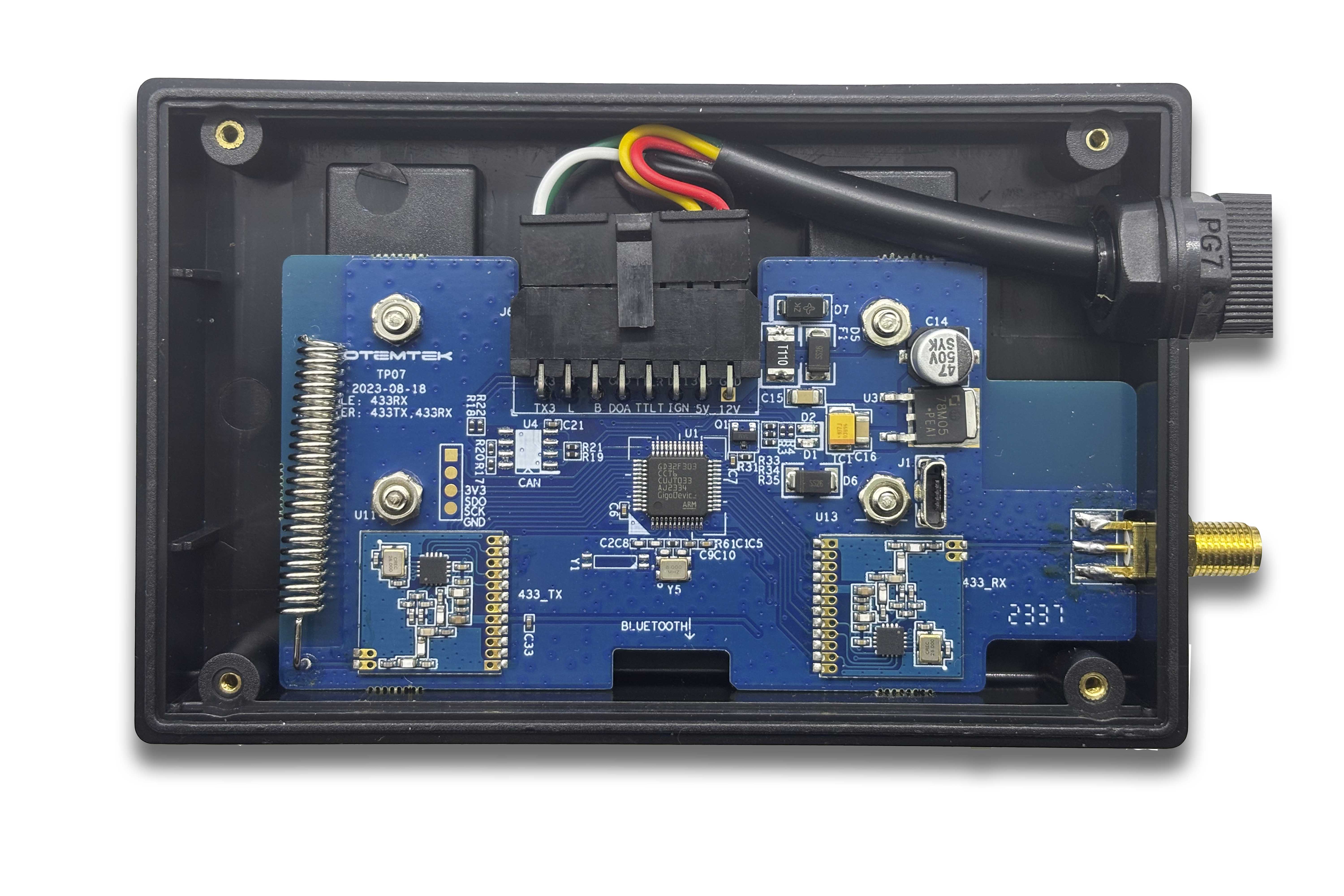

Open the TP07 with screw driver, you will see the USB port on PCB board.

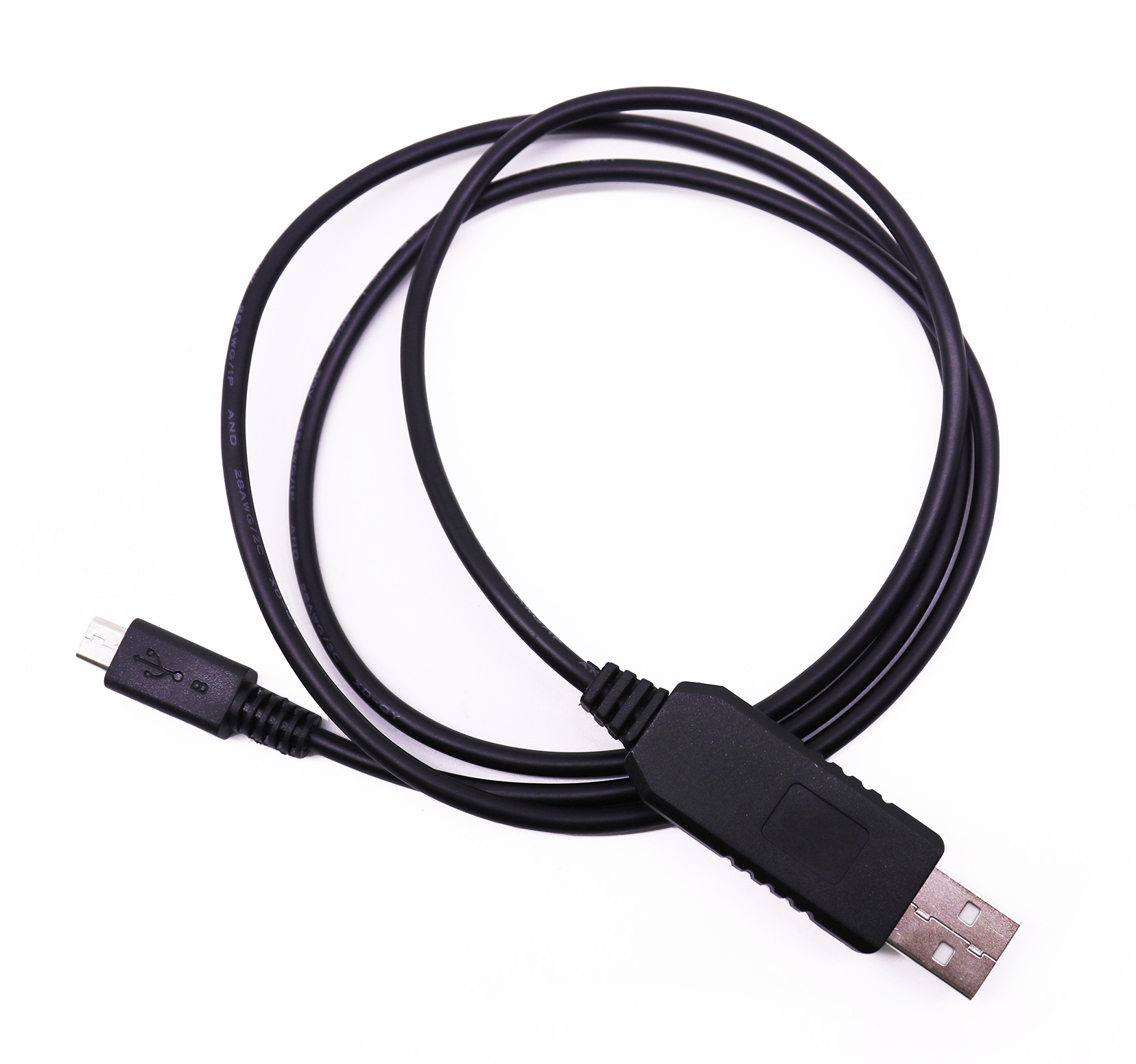

Connect the TP07 to PC via configure cable.

Start configuration

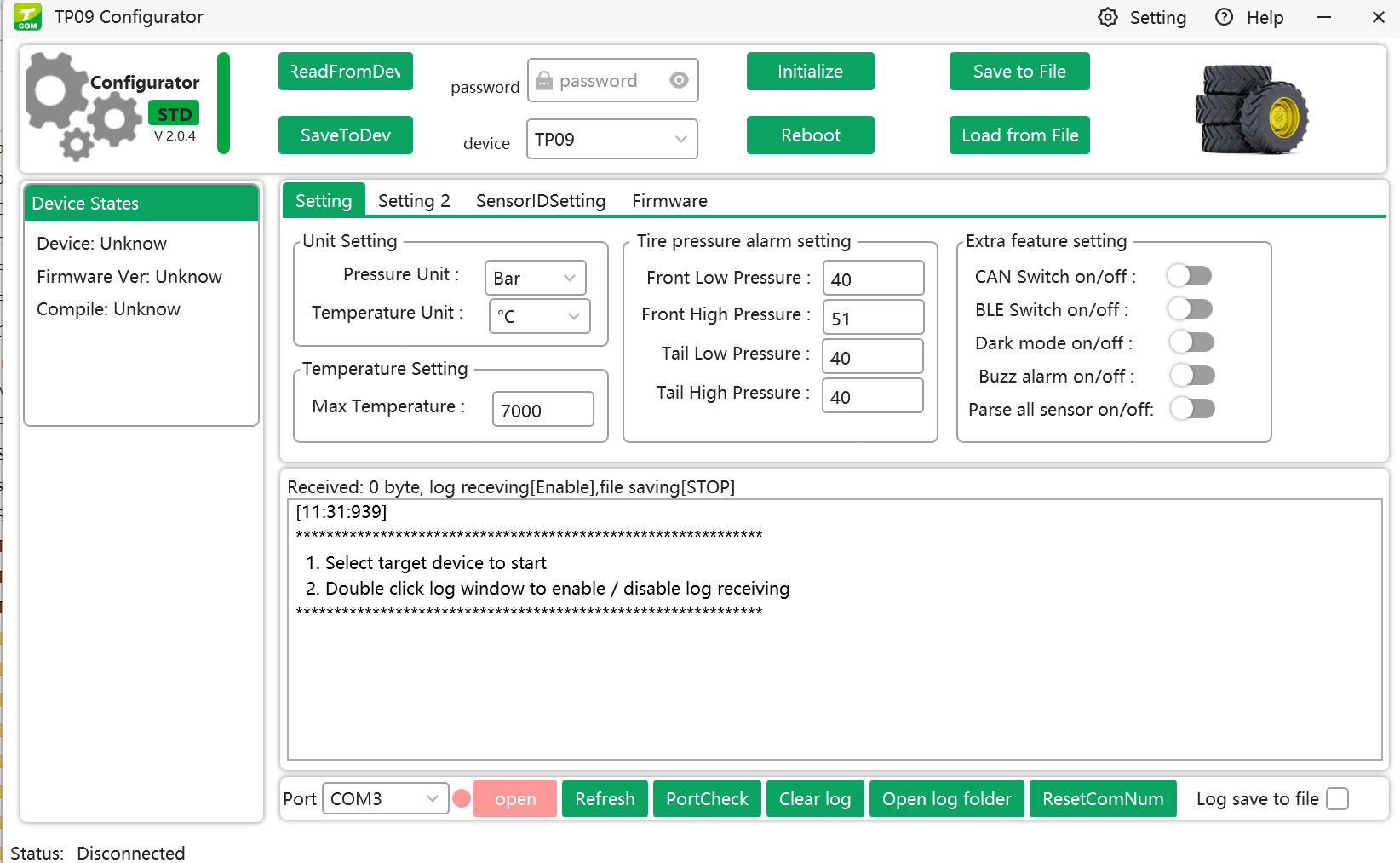

Open configurator to configure TP07

and type password "000000" in password box.

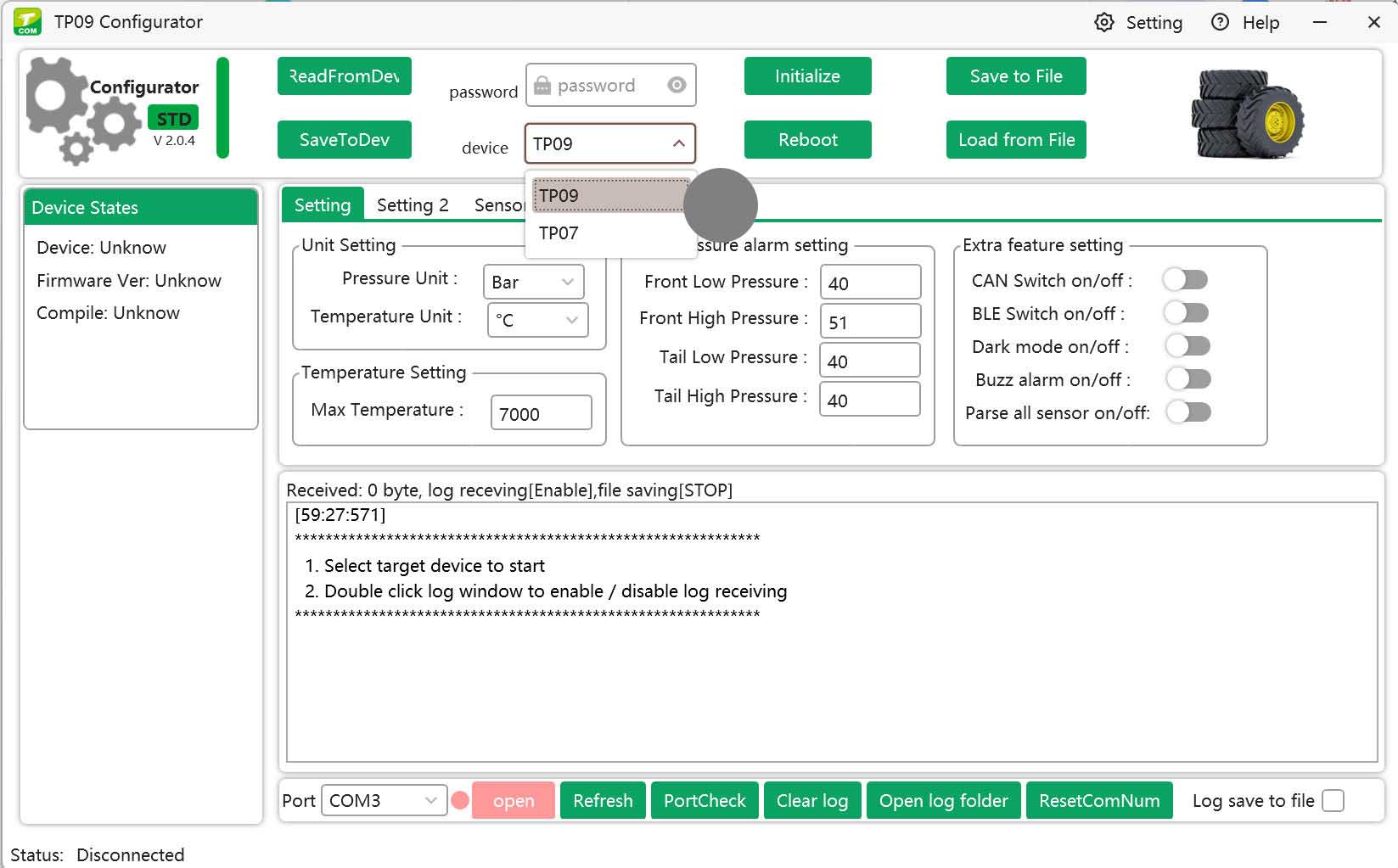

Choose the right product model on configurator

TP09 or TP07. TP09 is TPMS screen display TP09-C. TP07 is TPMS receiver module TP07.

check port

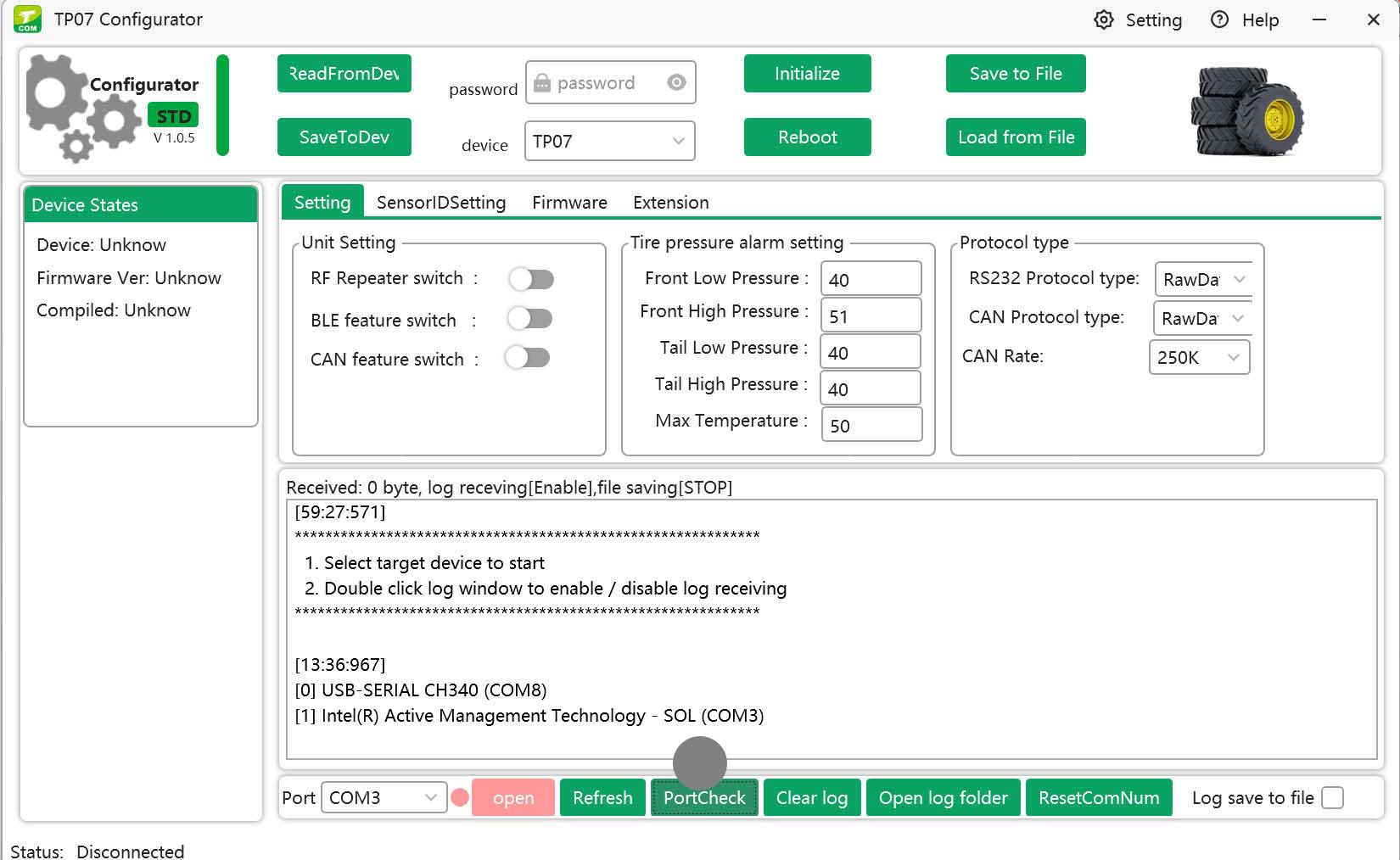

Click "PortCheck" button to find correct port for TP07. The log shows "[0] USB-SERIAL CH340 (COM8)", so COM8 is correct port.

read settings

Click "ReadFromDev" button to load settings from TP07. "ReadFromDev" ensures all settings in correct format before configuration work starts.

Add tire sensors

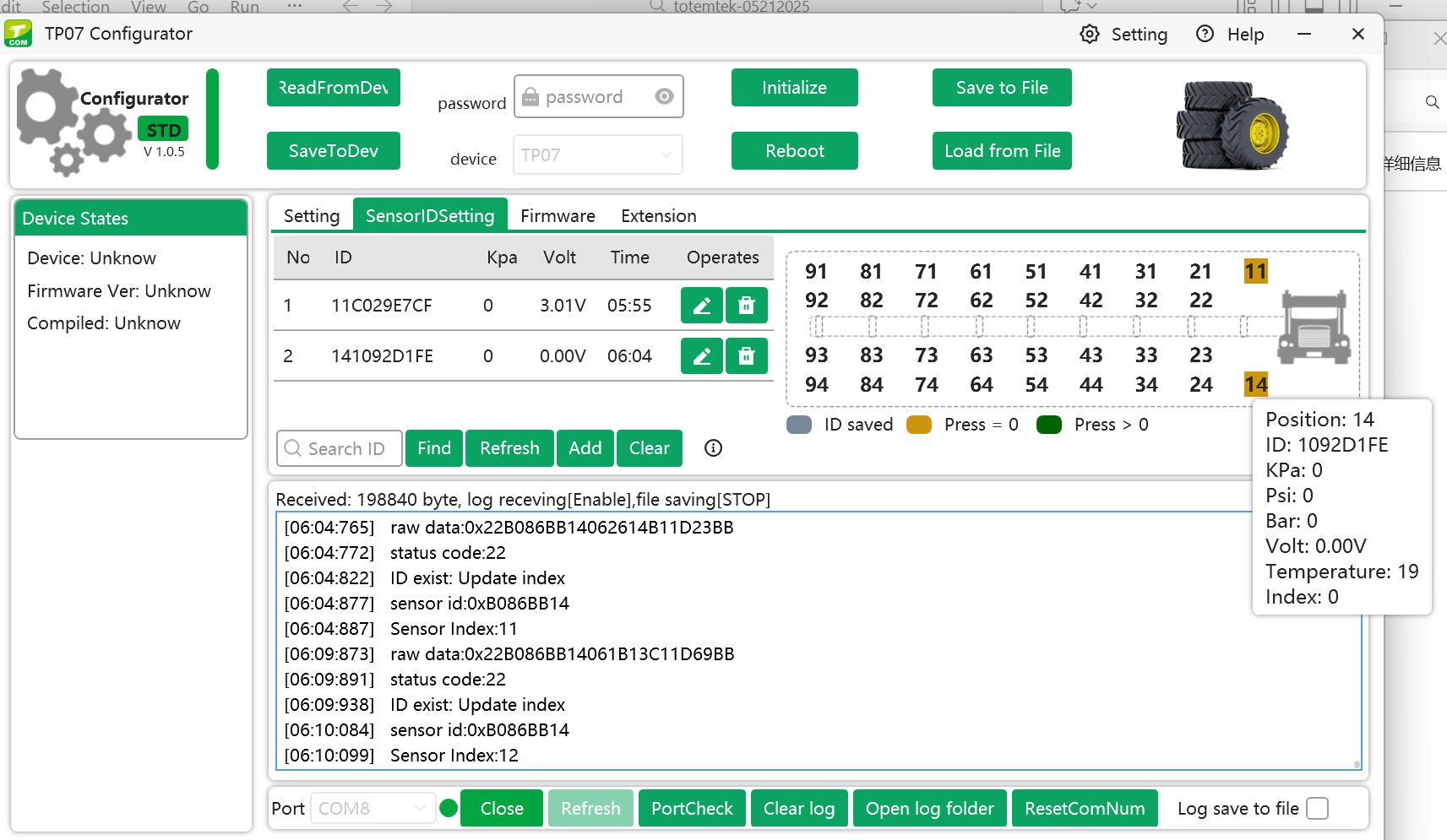

You can add tires position and sensors ID on "SensorIDSetting" tab.

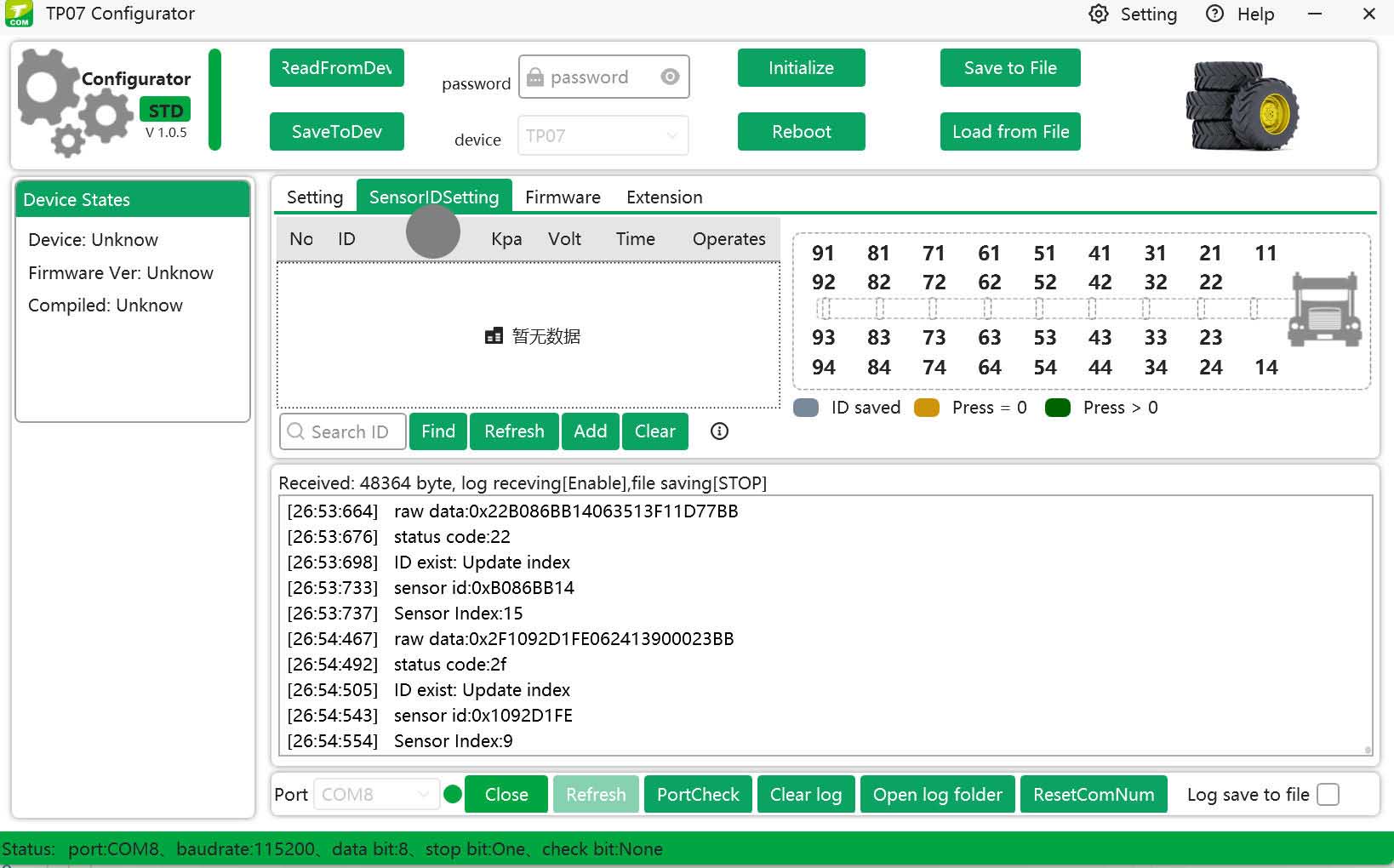

Navigate to "SensorIDSetting" tab.

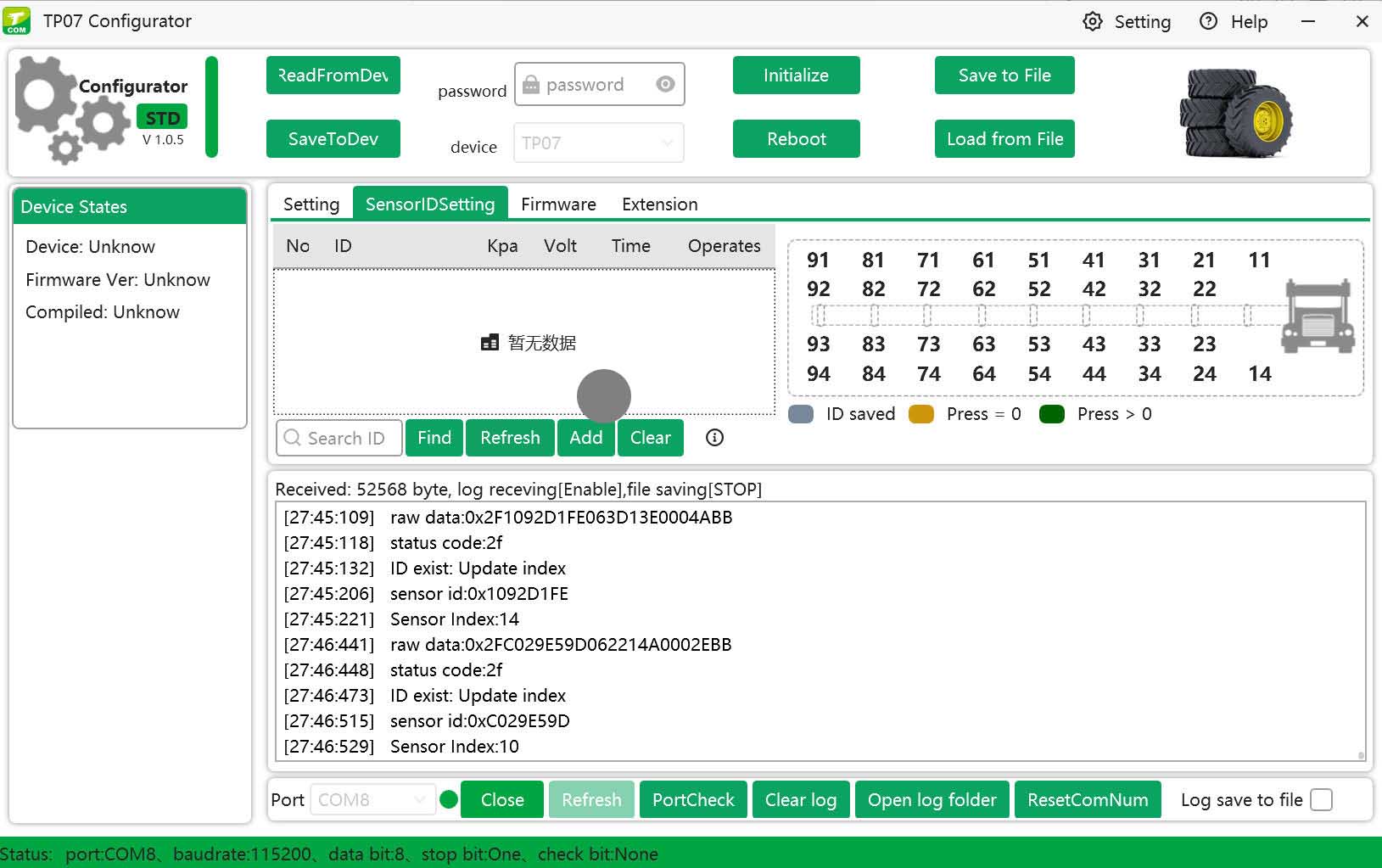

click add button.

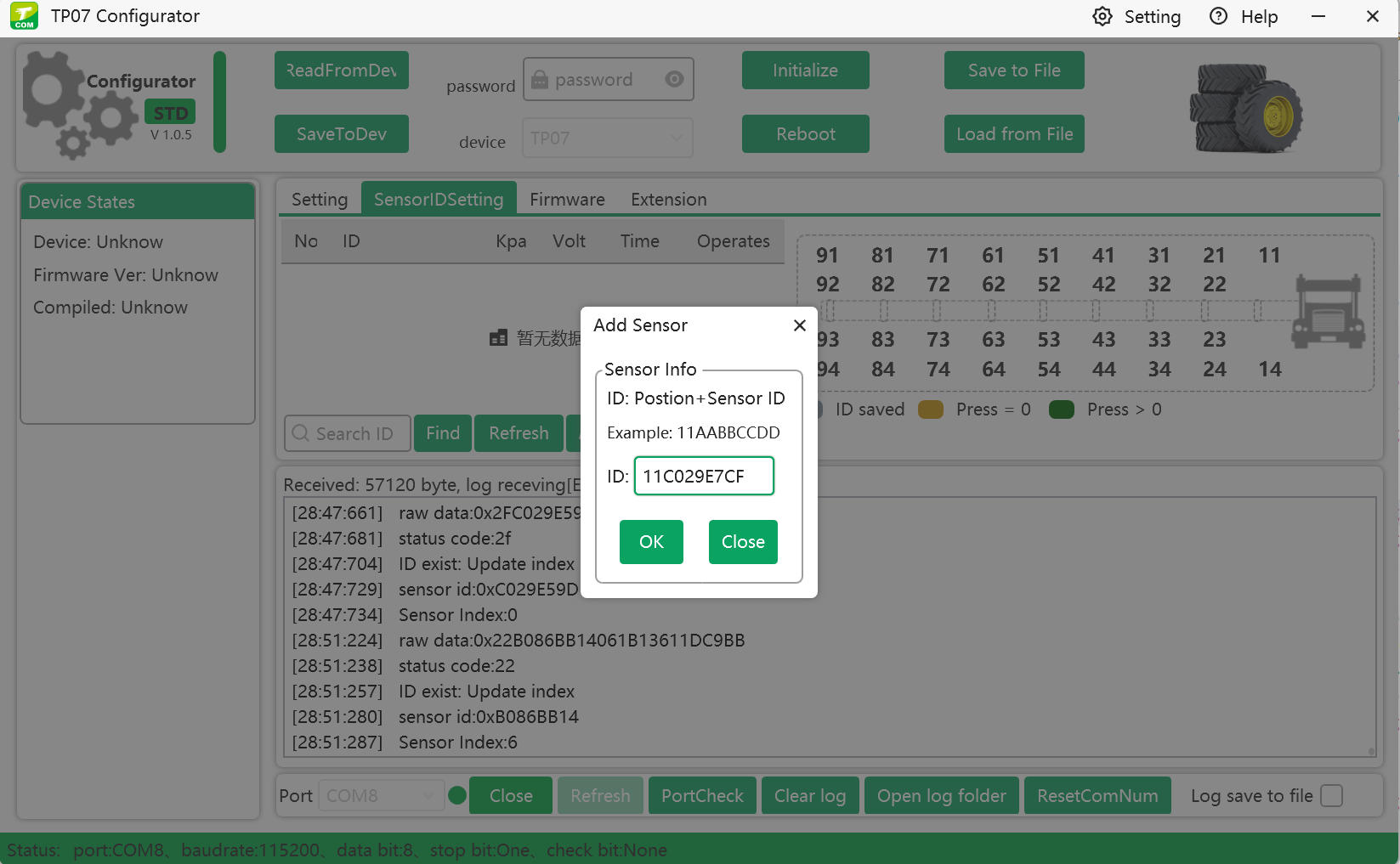

add tire position and sensor ID.

referring to the tires mapping on the right of configurator, if you want to bind one tire sensor to tire 11, first make sure this tire sensor is installed on the tire 11 exactly, then fill 11(this is tire position.) and sensor ID C029E7CF(this is tire sensor ID) into text box. It shows "11C029E7CF" and click OK.
And click "SaveToDev" button to save these settings into device.

After "SaveToDev", you can click "ReadFromDev" to see if new settings saved to device successfully:
if you see new settings on configurator, configured successfully; if you see old settings on configurator, configured failed, you can configure it again.

tire position and sensor ID list.

"11C029E7CF" would be shown in the list.

After these settings above, TP07 will send TPMS data from the listed sensors out to other devices via RS232 or RS485 or CAN or TTL or bluetooth.

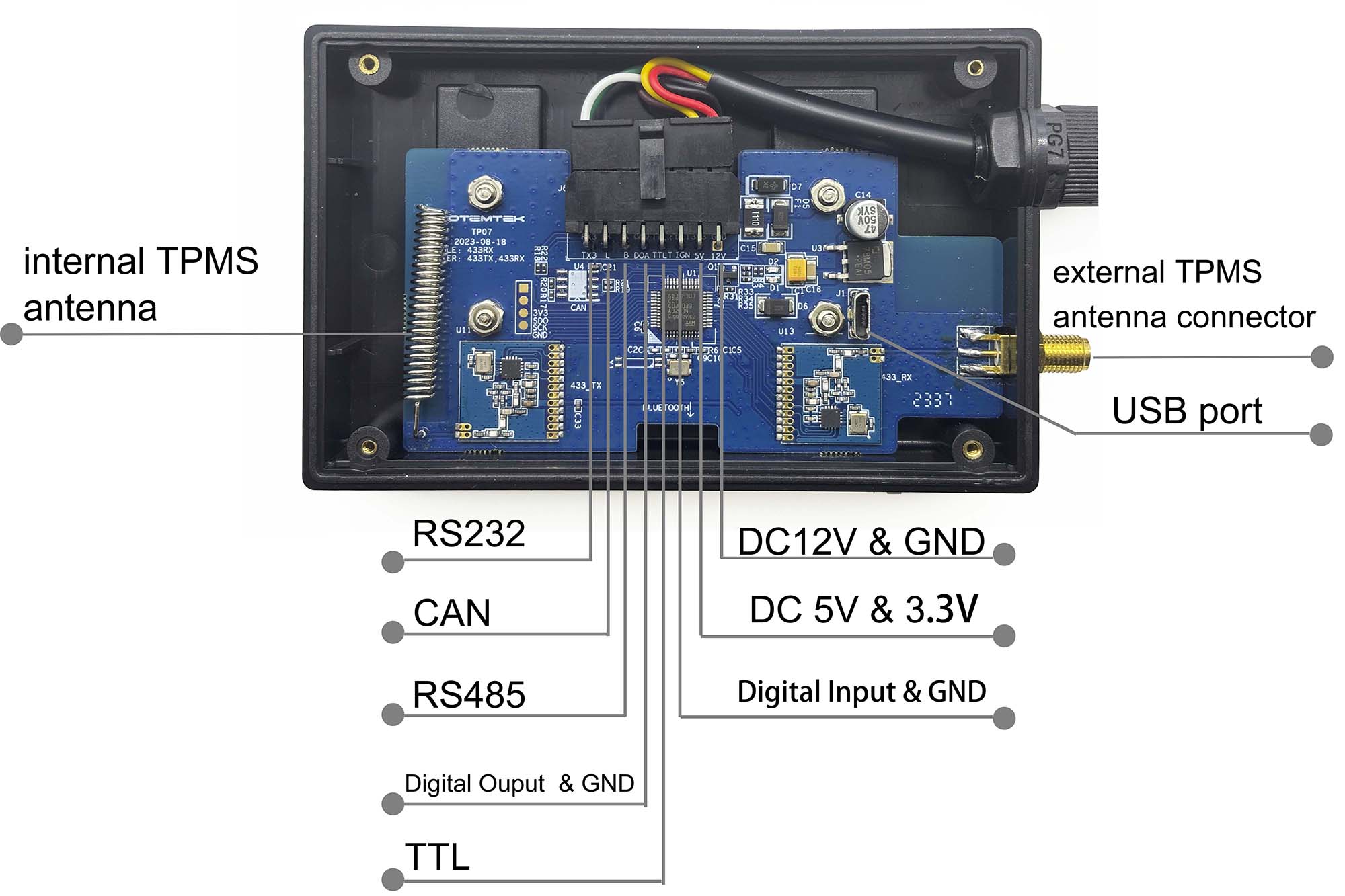

wires and pins description
