How to Connect TPMS Receiver TP07 to Teltonika GPS tracker via Bluetooth

TPMS receiver TP07 is designed for offering TPMS data to other devices via RS232 or RS485 or CAN or TTL or bluetooth. So any devices like GPS trackers or DVR lacking of support of TPMS can be realized TPMS function by using our TPMS receiver TP07. Now TP07 can also supports Conncting to Teltonika GPS tracker via bluetooth. Below is steps for how to connect TP07 to Teltonika GPS.

1. Things to start
● TPMS receiver TP07 device with bluetooth
● any Teltonia GPS tracker device with BLE feature
● configurator
● TP07 USB uart cable

2. work at TP07 side

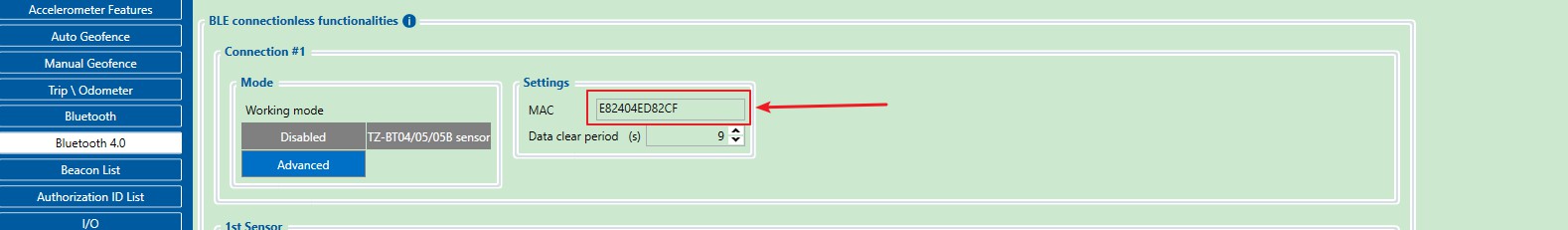

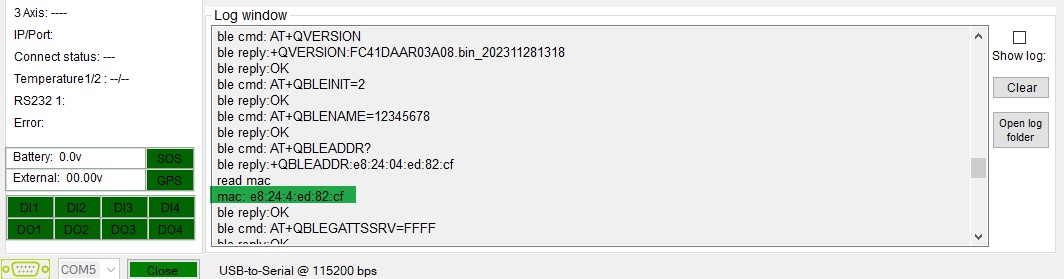

open the configurator, when device powers on, the mac address will print in the log window. Save this mac address. here example mac is: E82404ED82CF


3.Work at Teltonika side

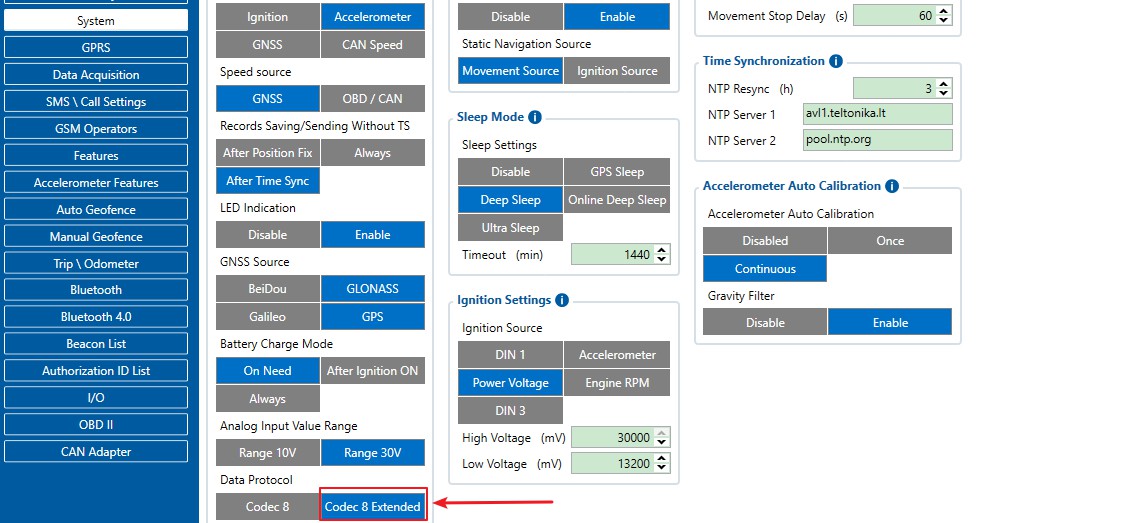

enable codec 8 extended feature.

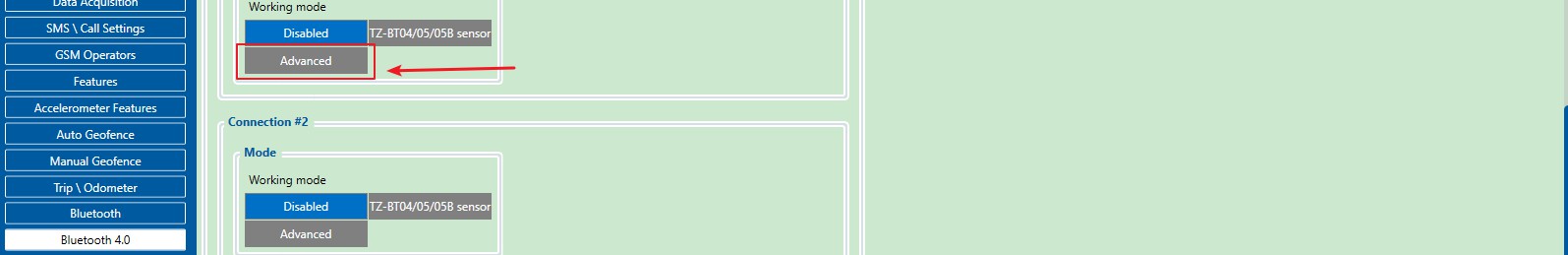

go to Bluetooth 4.0 table, enable Advanced


load pre-setting file. this file can be download from here. (TOTEMTEK-TP07-Preset.File).


and copy this setting file to teltonika device configurator setting folder

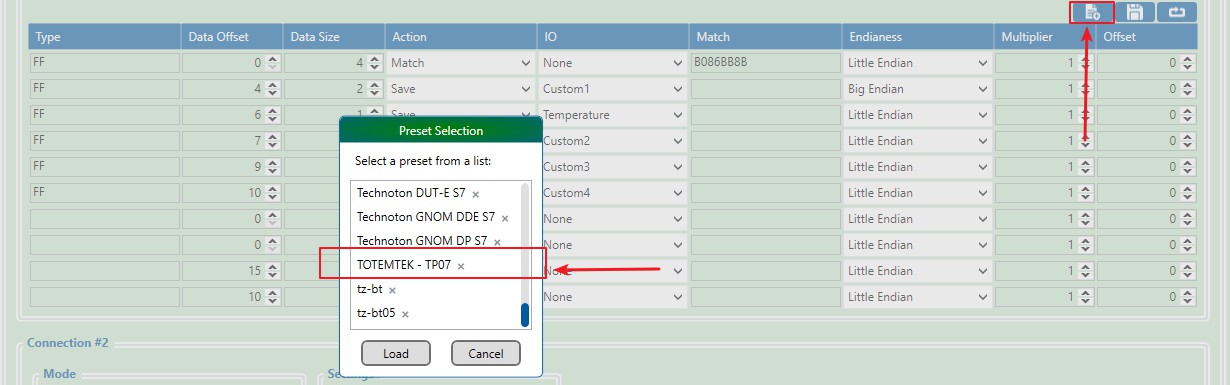

once the document paste into the 'Presets' folder, the device name would list in the selection list as below.

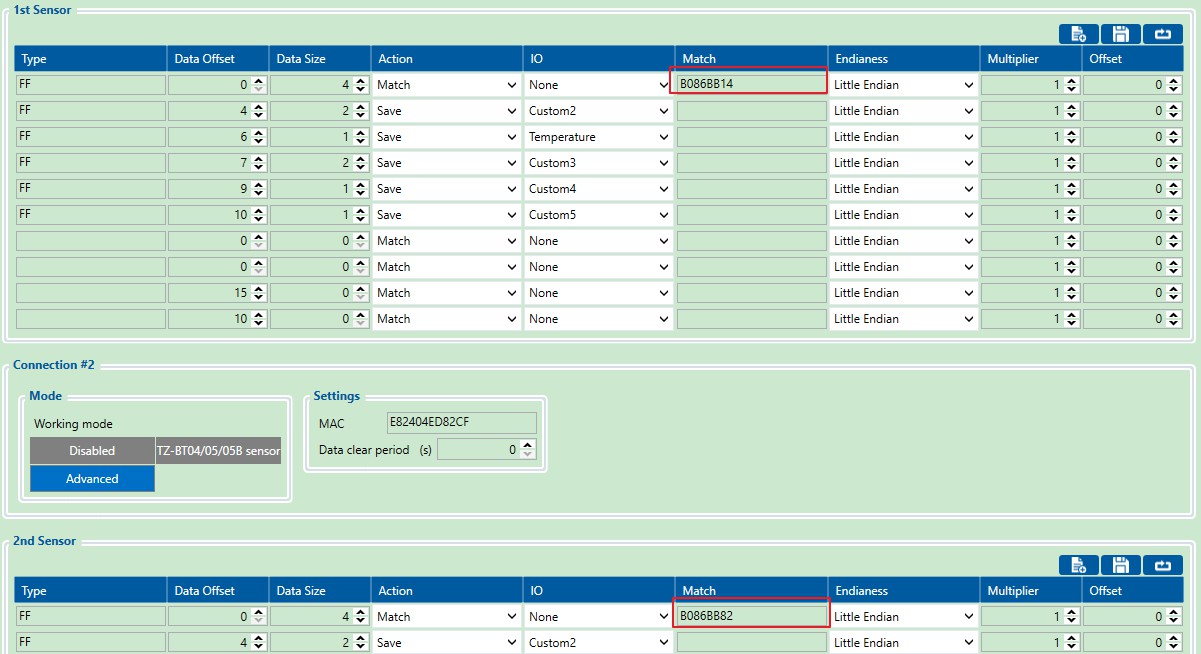

note: in this example, the sensor ID is: B086BB8B, this ID should be replaced to your own sensor id, like example below, sensor id: B086BB14 add to 2nd sensor.

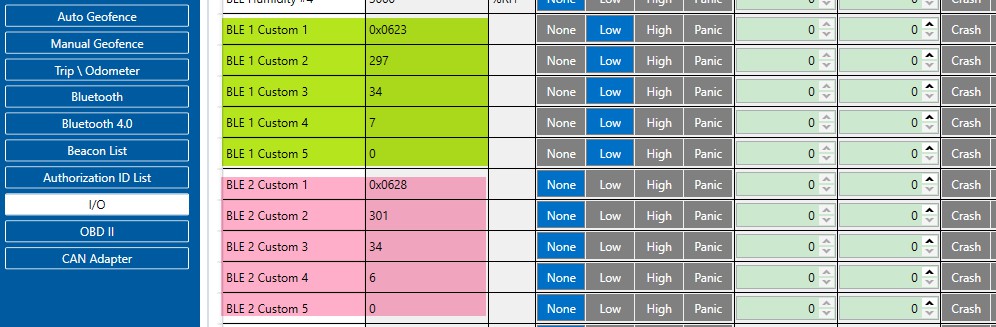

after all these steps, go to 'I/O' tab.
Custom 1: pressure value in KPA (Hex). 0x0623 = 1571 Kpa;
Custom 2: Voltage. 297 = 2.97V;
Custom 3: State code 34 = 0x22(Hex);
Custom 4: Data index (0-15);
