Products: GPS Tracking Solution

Model No.: AT04

gps tracking device

GPS tracking software platforms supporting this gps tracking device: redgps, traccar, gurtam, gpsgate, gps-server
GPS | GLONASS | BEIDOU
2G | 4G
DC9V - 50V external power supply
3D tremble sensor detecting movement and stop
Standard Size Sim
2Mb storage for 8000 or 16000 data
Micro USB for serial port
SMS alarm center
Remote oil cut off
IP67 Waterproof
one analog input for fuel level monitoring
Smart data transmission
send data by engine on
send data by engine off
send data by distance
send data by angle change
alarm data sent immediately

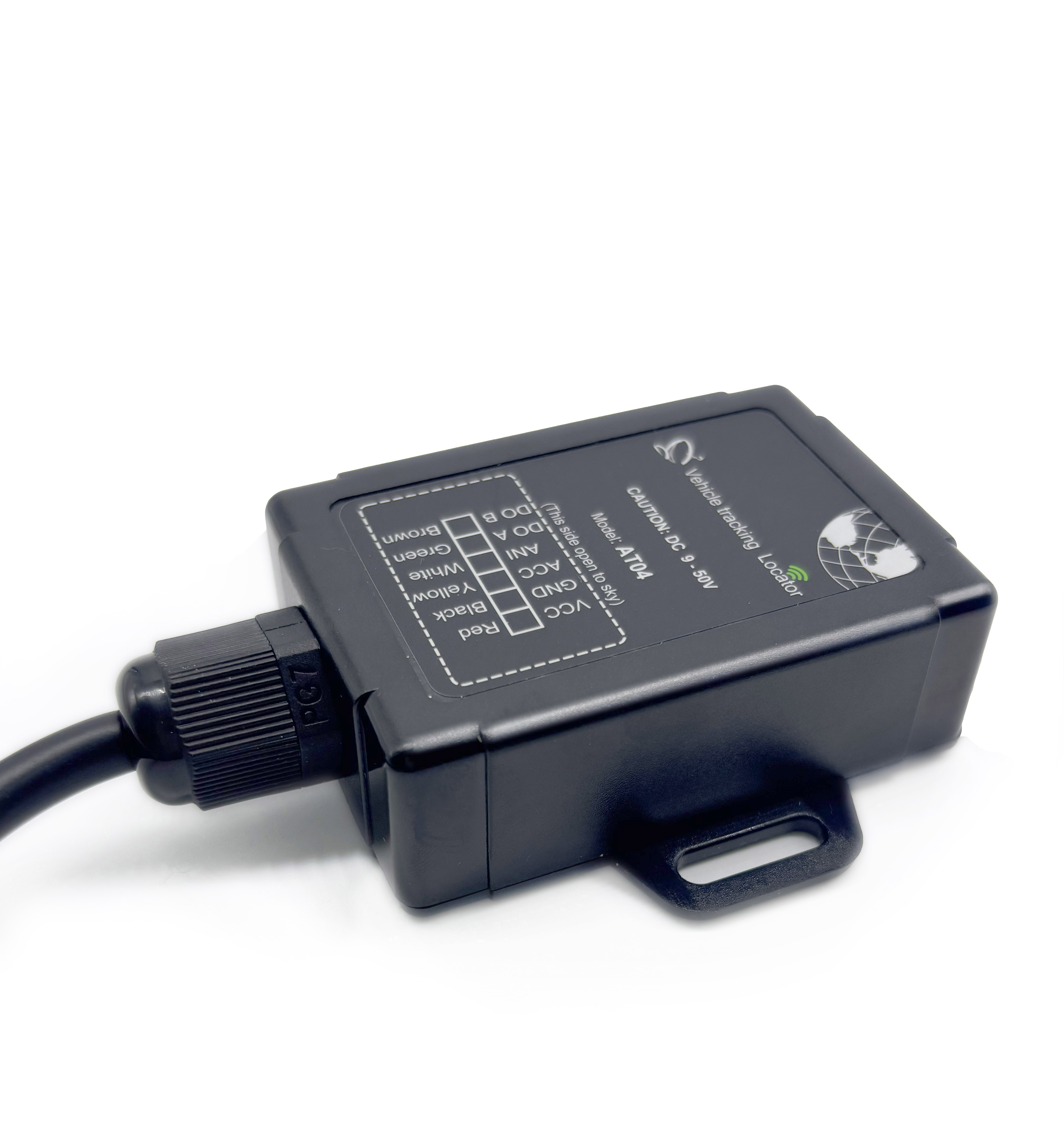

covert gps tracking, spy gps tracking in mini size

Where can this gps tracking device be used?

motorcyles
cars
trucks

Description for GPS tracking

● GSM: Quad-band: GSM850 / E-GSM900 / DCS1800 / PCS1900
● SMS, GPRS TCP / UDP communications
● Track by cell phone or web based tracking software
● GPS antenna and GSM antenna built in
● one digital input positive, two digital output
● constant time info even no gps signal again or device reboot

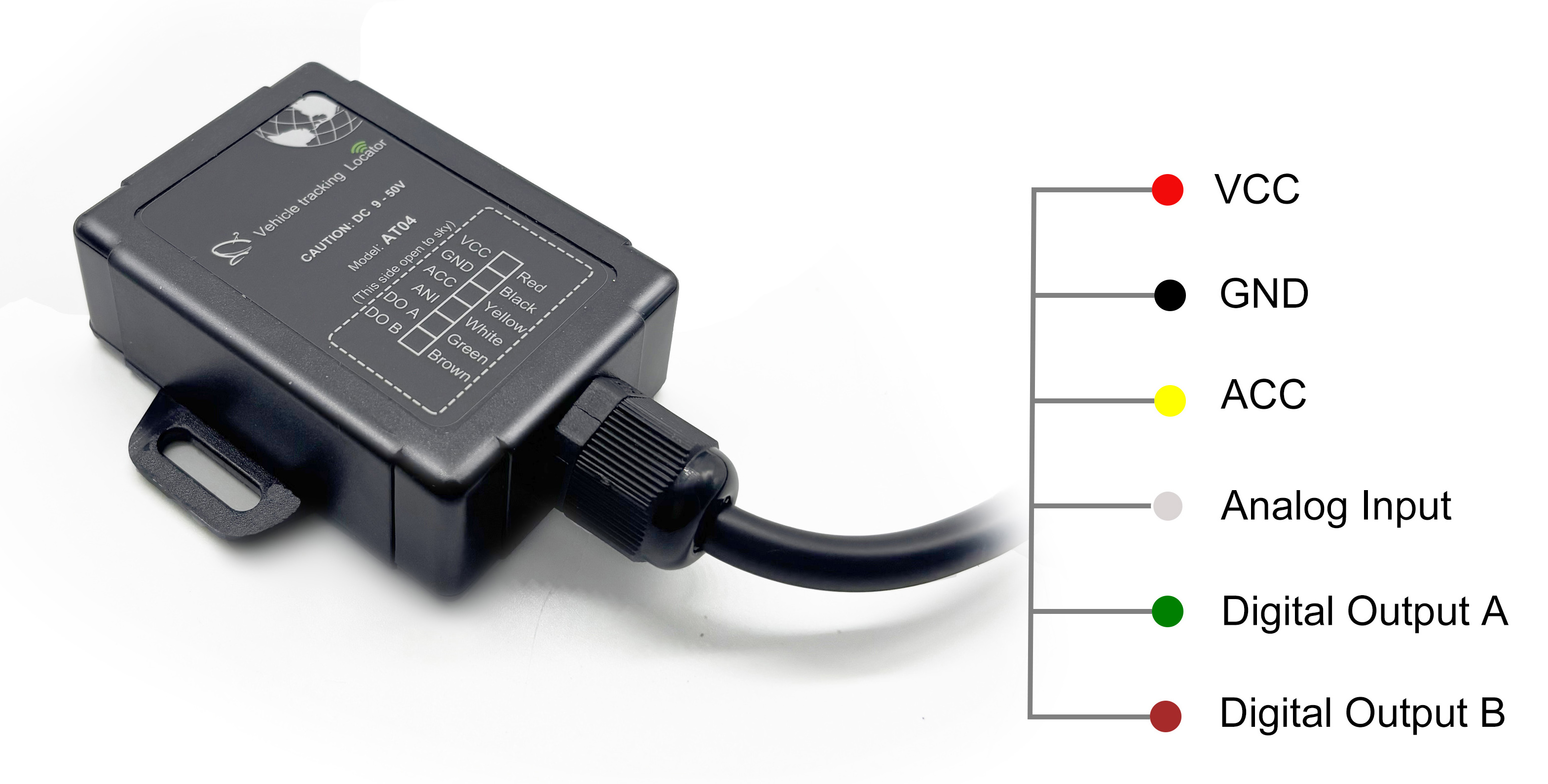

label on GPS tracking device



Environment Specs

Operating temperature
-20 °C to 60 °C
Battery Temperature
Battery charge: 0 °C to 45 °CBattery; discharge: -20 °C to 60 °C
Storage
-20 °C to 60 °C
Humidity
5% to 95% Non-condesing


Electrical Specification

Power supply range
DC 9V-50V
Maximum current drain
idle: 25mA @ 12V
sleep
GSM module working, GPS not working.
deep sleep
both GSM and GPS sleeping. 10mA consumption
active state
sending data: 50mA @ 12V

Connectivity

2G | 4G
B1/B3/B8/B28 @ LTE FDD, B1/B8 @ WCDMA(Europe, Middel East, Africa)
B2/B4/B12/B113/B25/B26@LTE FDD, B2/B4/B5@WCDMA(North America)


GNSS module

Frequency
1575.42MHz (GPS)
Acquisition sensitivity
-148dBm
Tracking sensitivity
-162dBm
Reacquisition sensitivity
>-160dBm
CEP
2.5m


GPS antenna SPECS

Power
3.0V DC to 5.0V DC
Antenna size
25mm×25mm×4mm
Frequency
1575.42MHz & 1561MHz
VSWR
2.0 Max
Band Width
10 MHz Min(Return loss -10dB)
Impendence
50 ohm
Band Width
4dBic @ zenith mounted on 70mm×70mm ground plane
Polarization
RHCP
LNA characteristics
Frequency
1575.42MHz & 1561MHz
Gain
28±3 dB
Output VSWR
1.5 Max
Noise Figure
1.5dB Typ.
Finished product characteristics
S.W.R
<2.0
Working Temp
28±3℃
Vibration
Sine sweep Lg(0~p)10~50~10HZ each Axis
Humidity
Humidity95%~100%RH
Noise Figure
<1.5
Line L Length
45mm
Connector Type
IPEX

GPS tracking configurationHow is the gps tracking device configured?

● via SMS
● via gprs/3g/4g
● via configuration software

How does it look like inside?

gps tracking device AT04-4G
gps tracking device AT04-4G

Size:

65*45*23mm
size of gps tracking device AT04

Accessories

Standard: N/A
Optional: sos button | door sensor | buzzer | LED Lamp |

How to use GPS tracking device AT04?

gps tracing device AT04 gps tracing device AT04 gps tracing device AT04

FAQ

Is it waterproof?

Yes. IP66 rating.

Does it work in Europe or Latin America or USA?

Yes. But before you purchase, please contact us first since we need to choose different 4G module for Europe or Latin America or USA.

Does the configuartion software supported in WIN11?

No, it doesn't. Please configure devices on WIN8, WIN10.

what is the initial password for gps tracker?

000000. 6 zeros.

when device sleeps, is there a way to tell it to wake and heartbeat every so often?

sleep mode doesn't restrict it from heartbeat data. Device can be triggered in sleep mode by trembles or IO ports changes.

Is there a way to determine why a msg was sent? Like if it was distance or veer? Like a code to say msg was received because of distance, stop time, veer etc

Yes, programmer can check the data type of data string. like AA is interval data, AB is veer data, AC is distance data, 01 is SOS data, etc. You can check alarm code listfor more information about the alarm types.
