2g signal of gsm/gprs gps tracker

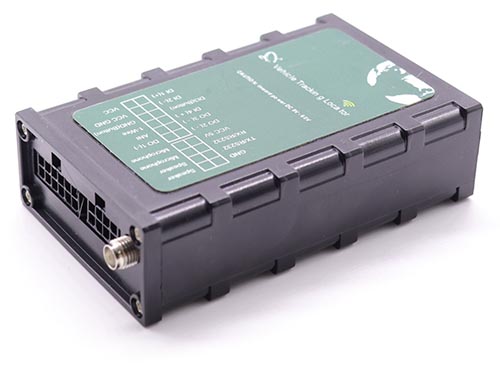

Model No.: AT07

gps tracker

Supported in world popular GPS tracking software platforms:
www.traccar.org    www.gurtam.com    www.gpsgate.com   www.gps-server.net   www.navixy.com

Features

• Send data to two servers simultaneously
• 3-Axis Digital Accelerometer movement status monitoring
• GPS and GLONASS supported simultaneously
• BeiDou and Galileo supported optionally
• Firmware upgrade by OTA
• Support DC 9v --50v , over-voltage protection
• Send commands to GPS trackers via GPRS or SMS
• Send GPRS data to IP or domain name
• 16Mb Flash Memory( stores 4000pcs or so data)
• Fuel/oil level detection with high accuracy
• Google map link sent via SMS
• Voice monitoring function with microphone
• user defined settings on I/O ports: digital input, digital output
High temperature battery for severe car environment
To see the traces of AT07, please check here:
gps tracker supporting RFID reader, camera, fuel level monitoring

Solutions supported by AT07

fuel level monitoring
OBDII monitoring
Garmin navigation
camera monitoring
RFID reader identification
Biometric finger prints reader
magnetic stripe reader identification


Description for GPS tracking

• GSM: Quad-band: GSM850 / E-GSM900 / DCS1800 / PCS1900
• u-blox GPS module with high GPS positioning accuracy
• Voice SMS, GPRS TCP / UDP communications
• Real time tracking and history data traces tracking
• Track by cell phone or web based tracking software
• Real-time tracking (Time, Distance Interval or Intelligent Mode)
• Control car doors close/open, Detect the status of engine on/off
• Intelligent power management: normal, sleep, deep sleep
• 16Mb flash memory for data storage in GSM blind area
• Sleep mode for Saving Power and GPRS traffic
• Backup battery: 800 mAh Li Polymer battery
• Geo-fencing reports: into-Geo-fence; Out Geo-fence
• Motion sensor for vehicle motion detections
• Different GPRS data string sending intervals:
           • sending data at certain interval in engine on or tremble state;
           • sending data at the other interval in engine off or still state
• Flexible GPRS data sending modes by different triggers:
           data string sent by time interval;
           data string sent by distance;
           data string sent by course change.


Alarm Events

Over-Speeding | Low battery | Geo-Fencing | Vibration Detect | Car Door Status | Power Supply Off | Panic Alert | GPS Antenna Cut | Engine Status | Course Change | gsm Jammer Detect
gps tracker supporting RFID reader, camera, fuel level monitoring

Peripherals

Standard:
GPS Antenna: 1pcs |   I/O cables: 1 set

Optional:
Relay | Door Sensor | Fuel Sensor | Camera | Temperature sensor | Microphone | Speaker | Buzzer | Ibutton Reader and Ibutton tags | RFID reader and RFID tags |
LED lamp | weighing sensor | fuel consumption meter


Technical Properties

ITEMS
SPECFICATIONS
 Power Supply  +12v --- +60v / 1.5A
 Backup Battery  800mAh, rechargeable polymer lithium-ion battery,
 anti-high temperature to 80°C
 Normal power consumption  2W, 12.5W at peak
 Dimension  89×55×25mm
 Weight  100g
 Operating temperature  -20° to 60° C
 Humidity  5% to 95% Non-condensing
 Frequency  Quad Band GSM 850/900/1800/1900MHz
 GPS Module   u-blox g7020 KT
 GPS Sensitivity  -162 dBm
 Receiver type  50 Channels | GPS L1 frequency, C/A Code | SBAS: WAAS, EGNOS, MSAS
 Horizontal position accuracy  GPS 2.5 m | SBAS 2.0 m | SBAS + PPP7 < 1 m (2D, R50)8) |
 SBAS + PPP7 < 2 m (3D, R50)8
 Velocity Accuracy  0.1 m/s
 Reacquisition  0.1 sec., average
 Hot start  1 s
 Warm start  1 s
 Cold start  27 s
 Heading accuracy  0.5 degrees
 Velocity Accuracy  0.1m/s
 LED  3 LED lights to show GPS/GSM/Power status
 Flash Memory  16Mb
 Button  One SOS Button
Interface  1 switch input, 4 digital inputs , 3 digital outputs, 1 analog inputs,
 1 RS232 ports, 1 1-wires for temperature sensors, 4 ports for voice communication

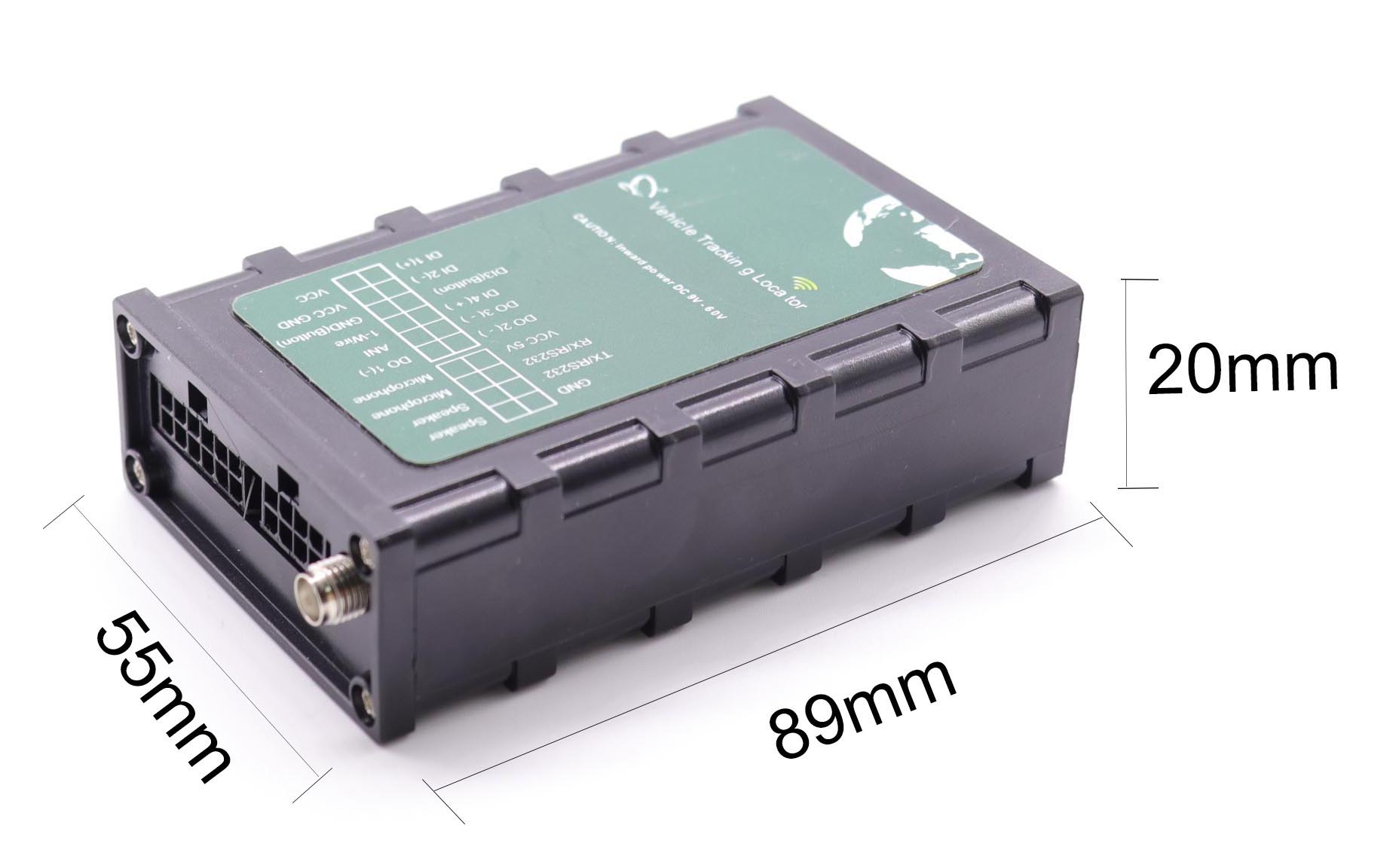

Size:

size of gps tracker at07

Packing Details

weight for 1 set device: 0.1kg
Inner box size:                           15×12.5×4.5cm
weight for 1 carton:         800g
size for 1 carton:              48×37×33 cm
capacity in one carton:   60pcs box / carton

     box for GPS tracker      carton for GPS tracker
