Products: GPS Tracking Solution

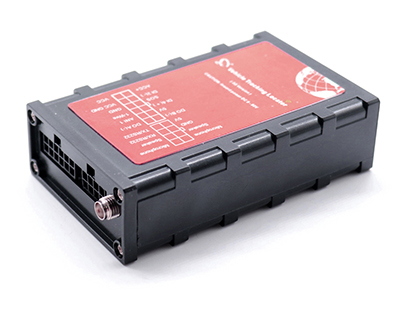

Model No.: AT05-3G

Low Cost 3G GPS tracking device

Supported in world popular GPS tracking software platforms: traccar    gurtam    gpsgate   gps-server

Features

● Send data to two servers simultaneously
● 3-Axis Digital Accelerometer movement status monitoring
● Support DC 9v --50v , over-voltage protection
● Send commands to GPS trackers via GPRS or SMS
● Send GPRS data to IP or domain name
● 16Mb Flash Memory( stores 4000pcs or so data)
● Fuel/oil level detection with high accuracy
● Google map link sent via SMS
● Voice monitoring function with microphone
● user defined settings on I/O ports: digital input, digital output
High temperature and low temperature resistant battery
To see the traces of AT05-3G, please check here:

gps tracker supporting RFID reader, camera, fuel level monitoring

Solutions supported by AT05-3G



Description

● UMTS/ HSPA+ and GSM/ GPRS/ EDGE coverage:
   GSM: 850/900/1800/1900MHz@GSM
  3G: 900/2100MHz | 850/1900MHz | 850/2100MHz
● high GPS positioning accuracy
● SMS, 3G TCP / UDP communications
● Real time tracking and history data traces tracking
● Track by cell phone or web based tracking software
● Real-time tracking (Time, Distance Interval or Intelligent Mode)
● Multiple alarm types
● Control car doors close/open, Detect the status of engine on/off
● Intelligent power management: normal, sleep, deep sleep
● flash memory for data storage in GSM blind area
● Sleep mode for Saving Power and GPRS traffic
● Backup battery: 300 mAh Li Polymer battery
● Geo-fencing reports: into-Geo-fence; Out Geo-fence
● Motion sensor for vehicle motion detections
● Different GPRS data string sending intervals:
at certain interval in engine on or tremble state;
at the other interval in engine off or still state
● Flexible GPRS data sending modes by different triggers:
data sent by time interval;
data sent by distance;
data sent by course change.

alarms:

Over Speeding
Low Battery
GEO Fencing
Vibration Alert
Car Door State
External Power Off
SOS Alarm
GPS Antenna state
Engine State
Course Change
vehicle towing alert
engine idle alert



Peripherals

Standard:
GPS Antenna: 1pcs |   I/O cables: 1 set

Optional:
Relay | Door Sensor | Fuel Sensor | Camera | Microphone | Speaker | Buzzer | RFID reader and RFID tags | LED lamp


Technical Properties

ITEMS
SPECFICATIONS
 Power Supply  +12v --- +60v / 1.5A
 Internal Battery  800mAh, rechargeable polymer lithium-ion battery,
 anti-high temperature to 80°C
 Normal power consumption  2W, 12.5W at peak
 Dimension  89×55×25mm
 Weight  100g
 Operating temperature  -20° to 60° C
 Humidity  5% to 95% Non-condensing
 Frequency  3G: 900/2100MHz | 850/1900MHz | 850/2100MHz
 GSM: 850/900/1800/1900MHz
 GPS Module   MT6350V/A
 GPS Sensitivity  -162 dBm
 Receiver type  50 Channels | GPS L1 frequency, C/A Code | SBAS: WAAS, EGNOS, MSAS
 Horizontal position accuracy  GPS 2.5 m | SBAS 2.0 m | SBAS + PPP7 < 1 m (2D, R50)8) |
 SBAS + PPP7 < 2 m (3D, R50)8
 Velocity Accuracy  0.1 m/s
 Reacquisition  0.1 sec., average
 Hot start  1 s
 Warm start  1 s
 Cold start  27 s
 Heading accuracy  0.5 degrees
 Velocity Accuracy  0.1m/s
 LED  3 LED lights to show GPS/GSM/Power status
 Flash Memory  16Mb
 Button  One SOS Button
Interface  1 switch input, 4 digital inputs , 3 digital outputs, 1 analog inputs,
 1 RS232 ports, 1 1-wires for temperature sensors, 4 ports for voice communication

What benefits From GPS tracking device AT05-3g we can get

● Long years stability in severe environment
● More support in various peripherals. It means you can meet different needs of users
● firmawre customization support, even hardware customization support

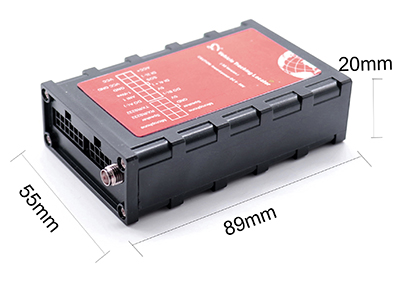

Size:

 89×55×25mm or 3.5×2.2×0.8inch
size of gps tracker at07-3G

Packing Details


weight for 1 set device: 0.1kg
Inner box size:                           15×12.5×4.5cm
W.G. for 60 sets in 1 carton:         800g
size for 1 carton:              48×37×33 cm
capacity in one carton:   60pcs box / carton
box for GPS tracker      carton for GPS tracker

>
