Products: GPS Tracking Solution

Model No.: AT02

Mini Spy GPS tracking device tracking covertly

GPS tracking software platforms supporting this gps tracking device: traccar    gurtam    gpsgate   gps-server

Features

● Ultra low power consumption
● Mini size suitable for any covert or spy tracking
● Ultra low weight so as not to be discovered
● Robust firmware design and stable hardware with watchdog
● Real time tracking and history data traces tracking
● Send commands to GPS trackers via GPRS
● Send GPRS data to IP or domain name
● Google map link sent via SMS
High temperature and low temperature resistant battery
covert gps tracking, spy gps tracking in mini size

Where can this mini size gps tracking device used?

wallet, bags, assets, livestock, animals.

Description for GPS tracking

● GSM: Quad-band: GSM850 / E-GSM900 / DCS1800 / PCS1900
● SMS, GPRS TCP / UDP communications
● Track by cell phone or web based tracking software
● Intelligent power management: normal, sleep, deep sleep
● Sleep mode for Saving Power and GPRS traffic




Technical Properties

ITEMS SPECIFICATIONS
 Power Supply  DC 5v / 1.5A
 Internal Battery  300mAh, rechargeable polymer lithium-ion battery,
 anti-high temperature to 80°C
Normal power consumption  5mA at standby mode
 Dimension  48×25×10mm (for PCB size)
 Weight  16g
 Operating temperature  -20° to 60° C
 Humidity  5% to 95% Non-condensing
 Frequency  GSM: 850/900/1800/1900MHz
 HDOP  <2.5m CEP
 GPS Sensitivity   capture -149dBm; track -167 dBm; recapture -161dBm
 Velocity Accuracy  0.1 m/s
 Reacquisition  0.1 sec., average
 Hot start  1 s
 Warm start  <30 s
 Cold start  <35 s
 Heading accuracy  0.5 degrees
 Velocity Accuracy  0.1m/s
 LED  3 LED lights to show GPS/GSM/Power status

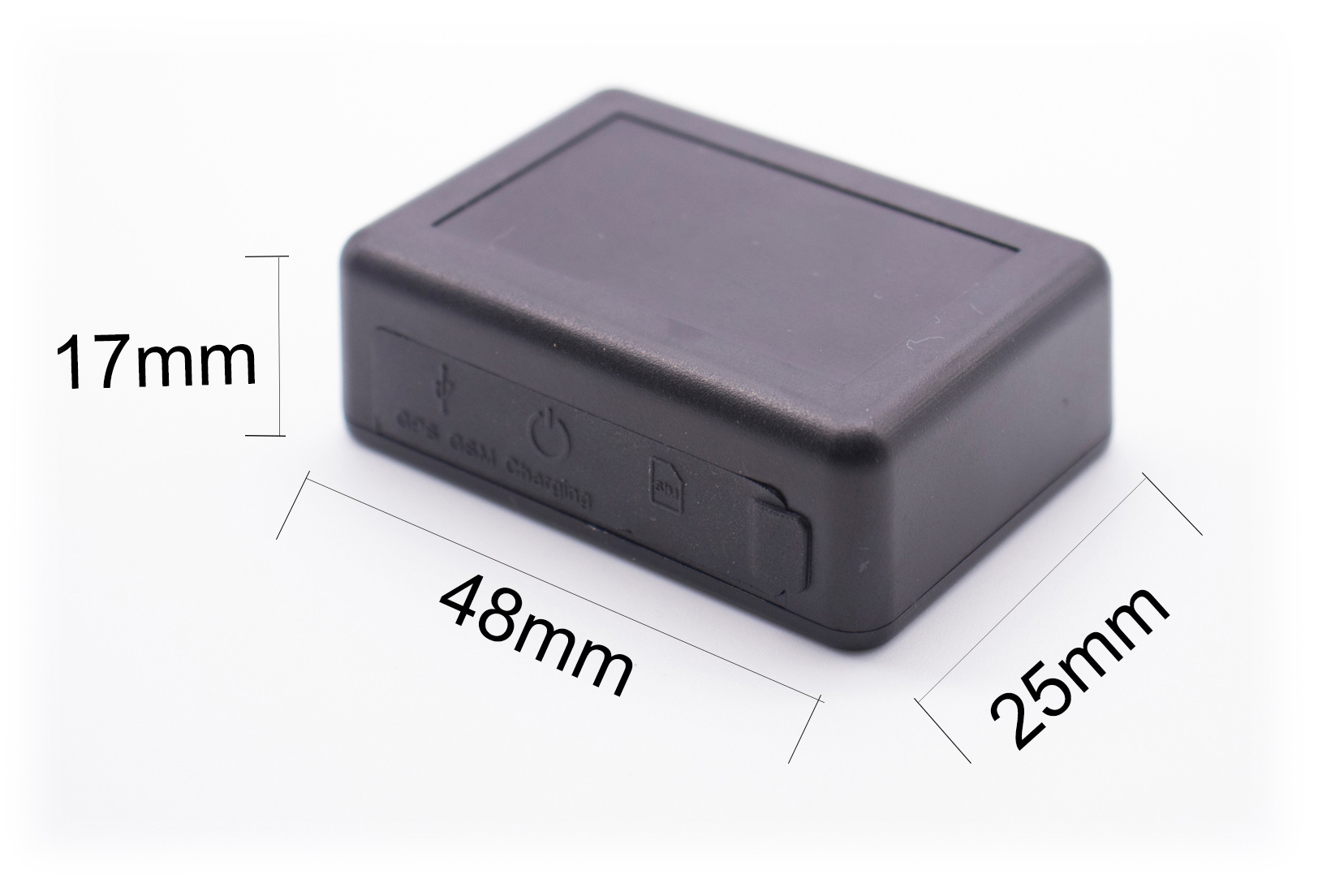

Size:

size of gps tracking device at02

Packing Details:


net weight for 1 AT02:16g
size for 1 carton: 48×37×33 cm
60pcs box / carton
box for GPS tracker      carton for GPS tracker
